Software Engineering is a complicated subject. Breaking through the myriad of technologies, frameworks, good practices, and programming languages is hard. Forgeware exists to demystify Software Engineering in a hands-on way. We try to demonstrate concepts in real-life scenarios and show the code behind those real-life applications so you get a sense of what you are dealing with. Please notice, that the scripts we provide are not meant to be used in any production environment.

Automating the creation of users, directories, permissions, and groups with Bash

This script will automate the creation of new developer accounts on the system, assign them directories and permissions based on their role, and add them to relevant development groups. This eliminates manual setup and ensures consistency. BEGINNER BASH LINUX

# Creating directories
sudo mkdir /public  # sudo execute the command with superuser privileges
sudo mkdir /frontend     # mkdir is the command for creating a directory
sudo mkdir /backend
sudo mkdir /ops

# Creating groups
sudo groupadd GRP_FRONTEND  # groupadd creates a new group
sudo groupadd GRP_BACKEND
sudo groupadd GRP_OPS

Implementing a version control system with Git/Github

We will use Git for version control and Github for a central repository. Developers will have access to the latest codebase and can track changes efficiently. BEGINNER GIT GITHUB

git clone <URL>
git add <filename> # to stage specific files for commit.
git commit -m "Meaningful commit message" # to create a snapshot of their changes with a descriptive message
git branch -M main
git remote add origin <repo URL> # This command configures a remote repository.
git push origin <branch_name>

Deploying infrastructure with Terraform

Terraform will automate infrastructure provisionings, such as servers, databases, and storage on a chosen cloud platform. This ensures consistent and repeatable infrastructure deployment. INTERMEDIATE TERRAFORM CLOUD COMPUTING

# Create a Resource Group for desktop
resource "azurerm_resource_group" "rg-desktop-bknd-001" {  # Define components of your infrastructure
  location = "westeurope"
  name     = "rg-desktop-bknd-001"
  tags     = var.desktop_tags
}

# Create a Resource Group for mobile
resource "azurerm_resource_group" "rg-mobile-bknd-001" {
  location = "westeurope"
  name     = "rg-mobile-bknd-001"
  tags     = var.mobile_tags
}

Creation of CI/CD pipeline with Azure DevOps

Azure DevOps will be used to create a continuous integration and continuous delivery (CI/CD) pipeline. Upon code commit, the pipeline will automatically build, test, and deploy the application to a staging environment. INTERMEDIATE AZURE DEVOPS DEVOPS

- task: TerraformTaskV4@4 # Executes Terraform commands.
  inputs: # Defines the input parameters for the task
    provider: 'azurerm' # Tells Terraform to use the Azure Resource Manager provider.
    command: 'init' # Specifies the Terraform command to be executed.
    backendServiceArm: 'bknd-prod-001(f97a229a-2aa9-47e7-ae31-76ed06c11e1d)'
    backendAzureRmResourceGroupName: 'rg-terraformdevops-001'
    backendAzureRmStorageAccountName: 'stterraformdevops01'
    backendAzureRmContainerName: 'terraform'
    backendAzureRmKey: 'y9d6HEg1PDSZBTjxfFG+vN4bctj1qPIHKVnB3a82SMhSJa1bJjvfsloJDw0J5pYzKfVbVVQwBYpC+AStA5P4pw=='
- task: TerraformTaskV4@4
  inputs:
    provider: 'azurerm'
    command: 'validate'
- task: TerraformTaskV4@4
  inputs:
    provider: 'azurerm'
    command: 'apply'
    environmentServiceNameAzureRM: 'bknd-prod-001(1)(f97a229a-2aa9-47e7-ae31-76ed06c11e1d)'

Containerizing an application with Docker

The application will be containerized using Docker, creating a self-contained package with all dependencies. This promotes portability and simplifies deployments. INTERMEDIATE DOCKER LINUX

version: '3.9'
services:
  apache:
    image: httpd:latest
    container_name: my-apache-app
    ports:
    - '8081:80'
    volumes:
    - ./website:/usr/local/apache2/htdocs

Deploying a web application with Kubernetes

Kubernetes will be used to orchestrate the deployment of Docker containers across multiple servers for scalability and high availability. ADVANCED KUBERNETES DOCKER

echo "Creating images..."

docker build -t alemorales9011935/projeto-backend:1.0 backend/.  # Build docker image.
Creates a self-contained executable package for running an application
docker build -t alemorales9011935/projeto-database:1.0 database/.

echo "Pushing images..."

docker push alemorales9011935/projeto-backend:1.0 # Uploading a completed Docker image to a Docker registry.
docker push alemorales9011935/projeto-database:1.0

echo "Creating Services..."

kubectl apply -f ./services.yml --validate=false # Figure out how to achieve
the desired state of the infrastucture we define.

echo "Criating Deployment"

kubectl apply -f ./deployment.yml --validate=false # Controls the validation behaviour.

Automating Web App deployment with Bash

A Bash script will trigger the Azure DevOps pipeline upon code commit, automating the entire deployment process. ADVANCED BASH LINUX AZURE DEVOPS

----------------------------------------------------------------------------------
echo "Updating and installing apache2 and unzip..."
apt-get update
apt-get upgrade -y
apt-get install apache2 -y
apt-get install unzip -y
----------------------------------------------------------------------------------
echo "Getting the website from a remote repo..."
cd /tmp
wget https://github.com/denilsonbonatti/linux-site-dio/archive/refs/heads/main.zip
----------------------------------------------------------------------------------
echo "Unziping the file and pasting into the apache directory..."
unzip main.zip
cd linux-site-dio-main
cp -R * /var/www/html/
----------------------------------------------------------------------------------

Setting developing environment with Vagrant

To provide developers with a consistent local development environment, Vagrant will be used to create virtual machines pre-configured with all the necessary tools and dependencies. ADVANCED VAGRANT IAC

# Creates an object of 3 virtual machines with memory 1024, unique IP and assigns a docker image

machines = {
  "master" => {"memory" => "1024", "cpu" => "1", "ip" => "100", "image" => "bento/ubuntu-22.04"},
  "node01" => {"memory" => "1024", "cpu" => "1", "ip" => "101", "image" => "bento/ubuntu-22.04"},
  "node02" => {"memory" => "1024", "cpu" => "1", "ip" => "102", "image" => "bento/ubuntu-22.04"}
}
# Sets the Vagrant configuration version to "2"
Vagrant.configure("2") do |config|

DevOps

20 minutes

Introduction

The Software Engineering market is like any other market. Everyone wants to be the first. Meaning? We must match our users' needs before our competitors do. We need to ship quality code faster for that to happen. And for that, we need to automate.

Anything that could be automated, must. Normally that goes for three main operations. Testing, Building, and Deployment. The diagram below illustrates a core Software Development pipeline and its according phase of the SDLC (Software development Life Cycle).

Next

User management automation with Linux. How to assign directories and permissions based on roles, and add them to relevant development groups.

User Management Automation

40 minutes

As we said before the main goal of DevOps is to ship code faster and efficiently.

However for that to happen first software companies would likely need to create groups, directories, and users for new employees. A company might do this with Linux in a scenario where they are using a self-hosted deployment model.

In this self-hosted scenario, the company would need to create user accounts on the Linux server for each new employee. These accounts would grant them access to the specific resources and applications they need to do their jobs.

Table of Contents

1. Payroll Table
2. Script
3. Permissions Strings
4. Example
5. Conclusion

Payroll Table

Below is the payroll table that will be used to create the user management script.

Script

The script below creates the above infrastructure

#!/bin/bash

# Creating directories
sudo mkdir /public  # sudo execute the command with superuser privileges
sudo mkdir /frontend     # mkdir is the command for creating a directory
sudo mkdir /backend
sudo mkdir /ops

# Creating groups
sudo groupadd GRP_FRONTEND  # groupadd creates a new group
sudo groupadd GRP_BACKEND
sudo groupadd GRP_OPS

# Creating users for the ADM group
sudo useradd Jane -m -s /bin/bash -G GRP_FRONTEND     # -m: This option tells useradd to create a home directory for the new user. The home directory will be created with the same name as the username.
sudo useradd Devin  -m -s /bin/bash -G GRP_FRONTEND   # -s /bin/bash: specifies the default shell for the new user
sudo useradd Bryan   -m -s /bin/bash -G GRP_FRONTEND  #  -G: This option adds the new user to a group

# Creating users for the SELLS group
sudo useradd Sarah -m -s /bin/bash -G GRP_BACKEND
sudo useradd Elijah -m -s /bin/bash -G GRP_BACKEND
sudo useradd Maya -m -s /bin/bash -G GRP_BACKEND

# Creating users for the OPS group
sudo useradd Noah -m -s /bin/bash -G GRP_OPS
sudo useradd Amelia  -m -s /bin/bash -G GRP_OPS
sudo useradd Bryan -m -s /bin/bash -G GRP_OPS

# Specifying permissions for directories
sudo chown root:GRP_FRONTEND /frontend    # chown(change owner) adds the root user as owner of the ADM group
sudo chown root:GRP_BACKEND /backend
sudo chown root:GRP_OPS /ops

#  Managing permissions
sudo chmod 770 /frontend   # chmod modify the permissions assigned to files and directories in the system.
sudo chmod 770 /backend # 770 is the permission string*
sudo chmod 770 /ops
sudo chmod 777 /public

Permissions Strings

The permissions string defines a specific access level for the owner, the group, and others on a file or directory.

• 4 represents read only (r = 4 in binary)
• 5 represents read and execute (r = 4, x = 1)
• 7 represents all permissions (read, write, and execute)

Example

Consider a permission string -rwxr--r--.

The first character - indicates it's a regular file. Owner (first set of three): "rwx" - This translates to read, write, and execute permissions for the owner (user who owns the file). Group (second set of three): "r--" - This translates to read permission only for the group. Others (third set of three): "r--" - This translates to read permission only for others (users who are not the owner and not in the group).

Conclusion

It's important to note that this scenario is less common for modern SaaS companies. Most SaaS companies would leverage a cloud-based deployment model where user management and access control are handled by the provider, eliminating the need for direct Linux administration.

There might be some hybrid deployments where core functionalities are self-hosted on Linux servers while other aspects leverage cloud services. In such cases, user and group management on the Linux side might still be necessary.

Next

Version control System with Github. How to easily keep track of all the code in your system and collaborate with other developers in a professional software development environment.

Implementing a version control system with Git/Github

25 minutes

Version control creates a history of all changes made to your files. You can easily revert to previous versions if something goes wrong or you decide you prefer an older iteration. This is like having a safety net for your work.

Table of Contents

1. Installing Git (One-time setup)
2. Clone the main repository
3. Make changes and add files
4. Renaming your branch
5. Configuring a remote repository
6. Push changes
7. Conclusion

Install Git (One-time setup)

• Windows/macOS: Download and install Git from the official website https://git-scm.com/downloads.
• Linux: Git is usually pre-installed on most Linux distributions. You can check by opening the terminal and typing git --version. If not installed, use your package manager (e.g., sudo apt install git on Ubuntu).

Clone the main repository

git clone <URL of Jane's repository>

This downloads a copy of the entire repository, including all branches and history, to the Devs' local machines.

Make changes and add files

The Devs can use standard Git commands like:

git add <filename> # to stage specific files for commit.
git commit -m "Meaningful commit message" # to create a snapshot of their changes with a descriptive message

Renaming your branch

git branch -M main

By default, Git creates a branch named master when you initialize a repository. This command renames the current branch (which points to the first commit) from master to main.

Configuring a remote repository

This step is necessary to push code to the main repository of the company.

git remote add origin <repo URL> # This command configures a remote repository.

Push changes

git push origin <branch_name>

This command pushes the employee's local commits directly to the remote repository. Here: origin is the default shortcut for the remote repository. <branch_name> specifies the branch they want to push their changes to (usually master for the main branch).

[!Note] Pull with Rebase (git pull --rebase): Sometimes when pushing changes you can get an error. Usually means that the remote branch is ahead of yours. So you need to pull changes first before push your new changes.

git pull --rebase fetches the latest changes from the remote repository and then attempts to replay your local commits on top of the updated remote branch head.

git pull origin <branch_name> --rebase

Checking Remote Repositories

This will display a list of all remote repositories associated with your project, along with their URL and fetch/push specifications.

git remote -v

Erasing a Remote Repository

This will completely remove the specified remote repository from your local project configuration.

git remote rm <remote_name>

Conclusion

This Git tutorial has equipped you with the essential tools to manage your code effectively. By mastering these core Git concepts, you've unlocked a powerful way to manage projects, track progress, and collaborate efficiently. This foundation will serve you well as you explore more advanced Git features and delve deeper into the world of version control.

Next

We will see how to deploy Infrastructure with Terraform.

Deploying infrastructure with Terraform and Azure

60 minutes

Terraform's ability to manage Infrastructure as code (IaC) makes it ideal for deploying infrastructure in different environments (development, staging, production) and cloud vendors.

Table of contents

1. Benefits of using the BFF pattern
2. Prerequisites
3. What's Terraform
4. Installing Terraform
5. Installing Azure CLI
6. Authenticating with Azure CLI
7. Create a Service Principal
8. Set your environment variables 9 Initialize Terraform
9. Write configuration
10. Conclusion

Benefits of using the BFF pattern

A software company might use the Backend for Frontends (BFF) pattern by tailoring data and functionalities to each specific UI(desktop vs mobile).

Prerequisites

1. An Azure subscription
2. Terraform installed

What's Terraform?

Infrastructure as Code (IaC) tools allow you to manage infrastructure with configuration files that you can version, reuse, and share rather than through a graphical user interface.

Installing Terraform

To install Terraform, find the appropriate package for your system and download it as a zip archive. After downloading Terraform, unzip the package.

Installing Azure CLI

The Azure CLI will allow you to authenticate with Azure.

Invoke-WebRequest -Uri https://aka.ms/installazurecliwindows -OutFile .\AzureCLI.msi; Start-Process msiexec.exe -Wait -ArgumentList '/I AzureCLI.msi /quiet'; rm .\AzureCLI.msi

Autenticating with Azure CLI

Terraform must authenticate to Azure to create infrastructure.

az login

Create a Service Principal

Next, we need to create a Service Principal. An application within Azure Active Directory with the authentication tokens Terraform needs to perform actions on your behalf.

Update the <SUBSCRIPTION_ID> with the subscription ID you specified in the previous step.

az ad sp create-for-rbac --role="Contributor" --scopes="/subscriptions/<SUBSCRIPTION_ID>"

Set your environment variables

A good practice HashiCorp recommends is setting these values as environment variables rather than saving them in your Terraform configuration to avoid passing sensitive info in the configuration code.

$Env:ARM_CLIENT_ID = "<APPID_VALUE>"
$Env:ARM_CLIENT_SECRET = "<PASSWORD_VALUE>"
$Env:ARM_SUBSCRIPTION_ID = "<SUBSCRIPTION_ID>"
$Env:ARM_TENANT_ID = "<TENANT_VALUE>"

Initialize Terraform

Initialize the project, which downloads a plugin called a provider that lets Terraform interact with the assigned provider.

 terraform init

Write configuration (main.tf)

# Terraform Settings Block contains Terraform settings, including the required providers Terraform will use
# to provision your infrastructure.

terraform {
  required_version = ">= 1.0.0"
  required_providers {
    azurerm = {      # A plugin that Terraform uses to create and manage your resources.
      source  = "hashicorp/azurerm"
      version = ">= 2.0" # Optional but recommended in production
    }
  }
}
# Configure the Microsoft Azure Provider
provider "azurerm" {
  features {}
}

# Create a Resource Group for desktop
resource "azurerm_resource_group" "rg-desktop-bknd-001" {  # Define components of your infrastructure
  location = "westeurope"
  name     = "rg-desktop-bknd-001"
  tags     = var.desktop_tags
}

# Create a Resource Group for mobile
resource "azurerm_resource_group" "rg-mobile-bknd-001" {
  location = "westeurope"
  name     = "rg-mobile-bknd-001"
  tags     = var.mobile_tags
}

 # Tags for desktop department
variable "desktop_tags" {
  type = map(string)
  default = {
    Department = "Des FEP Team"
    Environment = "Testing"
    Owner = "John Doe"
    Purpose = "Frontend"

  }
}

 # Tags for mobile department
variable "mobile_tags" {
  type = map(string)
  default = {
    Department = "Mob FEP Team"
    Environment = "Testing"
    Owner = "Jane Doe"
    Purpose = "Frontend"

  }
}

# Create a Storage Account for desktop
resource "azurerm_storage_account" "stdesktopbknd001" {
  name                      = "stdesktopbknd001"
  resource_group_name       = azurerm_resource_group.rg-desktop-bknd-001.name
  location                  = "westeurope"
  account_kind              = "StorageV2"
  account_tier              = "Standard"
  account_replication_type  = "LRS"
}

# Create a Storage Account for mobile
resource "azurerm_storage_account" "stmobilebknd001" {
  name                      = "stmobilebknd001"
  resource_group_name       = azurerm_resource_group.rg-mobile-bknd-001.name
  location                  = "westeurope"
  account_kind              = "StorageV2"
  account_tier              = "Standard"
  account_replication_type  = "LRS"
}

# Create a Storage Container for desktop
resource "azurerm_storage_container" "stdesktopui001" {
  name                  = "stdesktopui001"
  storage_account_name  = azurerm_storage_account.stdesktopbknd001.name
}

# Create a Storage Container for mobile
resource "azurerm_storage_container" "stmobileui001" {
  name                  = "stmobileui001"
  storage_account_name  = azurerm_storage_account.stmobilebknd001.name
}

Variables (var.tf)

Variable files separate configuration values from the main Terraform code. This allows to reuse the same Terraform codebase for multiple deployments by simply changing the variable values.

variable "location" {
  type = string
  default = "westeurope"
}

variable "tags" {
  type = map
  default = {
      "Ambiente" = "Desenvolvimento"
      "Integracao" = "Processo Devops"
      "Compania" = "Aula Devops"
      "Area" = "Marketing"
    }
}

Conclusion

By leveraging Terraform's Infrastructure as code (IaC) approach, you can achieve consistent, repeatable, and version-controlled infrastructure deployments.

Next

CI/CD pipelines. Which is arguably the most important skill for DevOps engineers to master.

Creating a CI/CD pipeline with Azure DevOps

It's a methodology that automates the software development process, from building and testing to deployment. By automating repetitive tasks, CI/CD significantly reduces the time it takes to get new features or bug fixes into production.

trigger:
  - main  # The pipeline will be triggered whenever there's a push to the main branch.

pool:
  vmImage: ubuntu-latest # Defines where the pipeline tasks will be executed.

steps:
- task: TerraformInstaller@1 # Installs a specific version of Terraform
  inputs:
    terraformVersion: 'v1.7.4'

- task: TerraformTaskV4@4 # Executes Terraform commands.
  inputs: # Defines the input parameters for the task
    provider: 'azurerm' # Tells Terraform to use the Azure Resource Manager provider.
    command: 'init' # Specifies the Terraform command to be executed.
    backendServiceArm: 'bknd-prod-001(f97a229a-2aa9-47e7-ae31-76ed06c11e1d)'
    backendAzureRmResourceGroupName: 'rg-terraformdevops-001'
    backendAzureRmStorageAccountName: 'stterraformdevops01'
    backendAzureRmContainerName: 'terraform'
    backendAzureRmKey: 'y9d6HEg1PDSZBTjxfFG+vN4bctj1qPIHKVnB3a82SMhSJa1bJjvfsloJDw0J5pYzKfVbVVQwBYpC+AStA5P4pw=='
- task: TerraformTaskV4@4
  inputs:
    provider: 'azurerm'
    command: 'validate'
- task: TerraformTaskV4@4
  inputs:
    provider: 'azurerm'
    command: 'apply'
    environmentServiceNameAzureRM: 'bknd-prod-001(1)(f97a229a-2aa9-47e7-ae31-76ed06c11e1d)'

Conclusion

By leveraging Azure Pipelines' features, you can achieve continuous integration and continuous delivery (CI/CD) for your projects, ensuring consistent and reliable deployments. We encourage you to explore the code, customize it for your specific needs, and contribute improvements. The provided examples showcase common CI/CD workflows, but the possibilities are vast.

Next

Containerization with Docker.

Containerizing With Docker Engine

2 hours

Docker containers are self-contained units that include everything an application needs to run, from its code to its libraries and dependencies.

Simply put, it solves the "It worked on my machine" problem.

Docker Concepts

Docker Engine vs Docker Desktop

Docker Engine is a lower-level tool, geared towards system administrators. On the other hand, Docker Desktop provides developers with a user-friendly interface and additional tools.

Installing Docker Engine

The easiest way to install Docker is with a convenience script they provide.

curl -fsSL https://get.docker.com -o get-docker.sh
sudo sh get-docker. sh

Pulling a Docker Image

Pulling an image from a public repository like Docker Hub allows you to quickly deploy a pre-built application without manually installing all the dependencies. Let's draw the hello-world image.

sudo docker pull hello-world

Checking the images

sudo docker images

Running the image

sudo docker run hello-world

Running an Interactive Image in the Background

In most cases, you'll likely use the -d or -its flags along with the run` command.

1. Use -d for background processes or services.
2. Use -it to start a container in the foreground and interact with it like a regular terminal session.

Docker --Help

Use sudo docker --help to see all commands and sudo docker <command> --help to see all available flags(options) for the command.

Usefull Docker Commands

Installing a MYSQL container

Running a MYSQL database in a container prevents conflicts with other software or system-wide configurations.

docker pull MySQL

Running a MySQL container

docker run -e MYSQL_ROOT_PASWORD=password --container name -d -p 3306:3306 image-name

1. -e Sets environmental variables.
2. -d Executes the database in the background.
3. -p Opens a port to communicate with the database.

Accesing MYSQL to create a Database

Executing bash inside the MySQL container to manage the database.

docker exec -it container-name bash

MYSQL client

Another way to interact with the database is through the Mysql client.

apt -y install mysql-client

Login to MYSQL to create a new database

After accessing bash we must login into MySQL to be able to manage our databases via SQL. After inserting the command below we will be prompted to insert the root user password.

MySQL -u root -p --protocol=tcp

Troubleshooting connection issues

Docker assigns an IP to every container to be able to connect with other distributed systems independently. To troubleshoot any connection issues we must use the inspect command.

docker inspect container-name

Data storage in containers

Containers are ephemeral, meaning their data is lost when the container stops. Mounts allow you to persist data beyond the container's lifecycle. A mount is a way to share data or files between the host system and the container. It essentially creates a link between a directory or file on the host machine and a directory within the container.

docker run -e MYSQL_PASSWORD=your-password --name container-name -d -p 3306:3306 --volume=/host-path -A:/container-path image-name

Mount Types

1. Bind: Binds a directory from the container to a directory in the host (example above)

docker run -v /hostdir:/containerdir image-name

2. Named: Manually created volumes inside a standard directory.

docker volume create volume-name # Creates volumes
docker run -v volume-name:/container-directory image name # Refeerences the created volume

Pulling an Apache Container

Apache, also called Apache HTTP Server, is free and open-source software that powers many websites. When you type a web address into your browser, Apache receives the request and fetches the relevant files (like HTML, CSS, and images) that make up the webpage.

It then sends this information back to your browser, which interprets it and displays the webpage.

docker pull httpd # Pulls the official Apache container from the docker hub

Interesting Fact

Apache is a core component of the LAMP stack, a popular combination of open-source software for building websites. LAMP stands for Linux (operating system), Apache (webserver), MySQL (database), and PHP (programming language).

Bindind a local volume to an Apache Web Server Container

By binding a local folder on your machine (where you're developing your website) to the Apache container's document root (the folder where it looks for website files), you can make changes to your code and see them reflected immediately in your web browser without needing to rebuild the container image or copy files back and forth. This allows for a much faster development workflow.

docker run --name container-name -d -p 80:80 --volume=host-volume-path -A:/usr/local/apache2/htdocs httpd

1. host-volume-path: Where the website files are
2. -d: Runs the container in the background
3. /usr/local/apache2/htdocs: The standard directory for file storage in the Apache container.
4. httpd: The image name

CPU and Memory Optimization

Resource optimization is important for containerized apps since an over-expanding container could hinder the performance of the whole system.

docker update container-name -m 128M --cpus 0.2
docker stats container-name # Provide container stats

1. -m 128M: Limit the memory to 128mb
2. --cpus 0.2: Limit the cpu usage to 20%

Stress Testing

Stress testing helps us understand how a containerized application behaves under heavy load. This can reveal bottlenecks in CPU, memory, or disk usage. The command stress is a stress test generator that simulates heavy workloads to see how your system responds.

apt install -y stress
stress --cpu 1 --vm-bytes 50m --vm 1 --vm-bytes 50m

1. --cpu 1: Cpus to stress
2. --vm-bytes: Bytes volume to stress
3. --vm 1: Memory stress

Docker Info, Logs, Top

Here are some useful docker commands for managing containers.

docker info # Shows server info
docker logs container-name # Shows container logs
docker top container name # Shows container processes

Networking

In containerized environments, like Docker, multiple containers are often used to build applications. Each container typically runs a single service, but these services often need to communicate with each other to function properly. This is where container networking comes in.

docker network -ls # List networks
docker inspect network-name # List containers within the network
docker network create new-network # Create a new network

Container isolation: Network isolation allows you to define which containers can communicate, and how. For example; a container running a database might not need access to the internet. Also, if a container gets compromised by malware, network isolation can limit the attacker's ability to spread to other containers on the system.

docker run -dti -name container-name --network network-name image-name # Creates a container inside a defined network

Dockerfile

A Dockerfile is a text document that contains instructions for building a Docker image. It essentially acts like a recipe that Docker follows to create a customized environment for your application to run in.

Common instructions involve:

1. FROM: Specifying the base image to start from (like Ubuntu or a pre-built image).

2. COPY: Copying files from your local machine into the image.

3. RUN: Executing commands within the image to install dependencies, configure the environment, etc.

4. EXPOSE: Defining ports that the application running in the container will listen on.

5. CMD or ENTRYPOINT: Specifying the command to run when the container starts (like launching your application).

6. Creating a Dockerfile

nano dockerfile # Creates a dockerfle

2. Editing a Dockerfile example that creates an Ubuntu and Python image.

FROM ubuntu
RUN apt update && apt install -y python3 && apt clean
COPY app.py /apt/app.py
CMD phyton3 apt/app.py

3. Building a Dockerfile

The basic syntax for docker build is:

docker build [OPTIONS] <context>
# Example
docker build. -t ubuntu-python

1. <context> is typically the path to the directory containing your Dockerfile. By default, the current directory is used if not specified. There are several options available to customize the build process, such as:
2. -t: Tag the resulting image with a name and version.
3. -f: Specify an alternative Dockerfile location.

Docker Compose

A tool used to define and run multi-container applications. Employs a YAML file to configure "services" (essentially, containers) and their relationships. Docker Compose revolves around three main components that work together to define and run your multi-container application:

1. Services: These are the fundamental building blocks of your application, representing individual containers.
2. Networks: Docker Compose can create virtual networks for your containers to communicate with each other securely. This eliminates the need for complex manual network configuration.
3. Volumes: As mentioned earlier, volumes allow you to persist data outside the container itself. You map a directory on the host machine to a directory within the container. This ensures data isn't lost when the container restarts.

Dockerfile vs Docker Compose

In essence, Dockerfile provides the building blocks (images), and Docker Compose orchestrates them to run a multi-container application efficiently.

Installing Docker Compose

Before executing the yaml file it's important to install docker compose. This task is achieved by coding the following command into the terminal.

apt install docker-compose

Create the Compose file

After installing docker-compose, we must create the YAML file containing the infrastructure we desire to create. The script below shows an example of an Apache web server container deployment.

version: '3.9'
services:
  Apache:
    image: httpd:latest
    container_name: my-apache-app
    ports:
    - '8081:80'
    volumes:
    - ./website:/usr/local/apache2/htdocs

Executing the script

Finally, we must execute the script so our infrastructure( in this case our Apache web server) will be created. We can do that by typing the following command into the console.

docker-compose up -d

Conclusion

Docker offers a standardized approach to packaging, deploying, and running applications. This has revolutionized how software is built and delivered, making it a vital tool for developers and operations teams today.

Next

We will see how to perform container monitoring and optimization.

Performance & Optimization

By monitoring container performance metrics like CPU, memory, and network usage, you can identify and troubleshoot issues before they impact users.

Requirements

1. Docker: Container management
2. Prometheus: Scrapes metrics
3. Node Exporter: Export metrics
4. Grafana: Build dashboards for monitoring

Folder Structure

A well-defined structure promotes modularity. Each service or component can reside in its directory, encapsulating its configuration files, Dockerfile, and related scripts.

#! bin\bash

echo "Creating Folder Structure"

mkdir -p grafana
mkdir -p prometheus
mkdir -p node-exporter
touch /prometheus/prometheus.yml
touch /grafana/docker-compose.yml
touch /prometheus/docker-compose.yml

echo "Folder Structure Created"

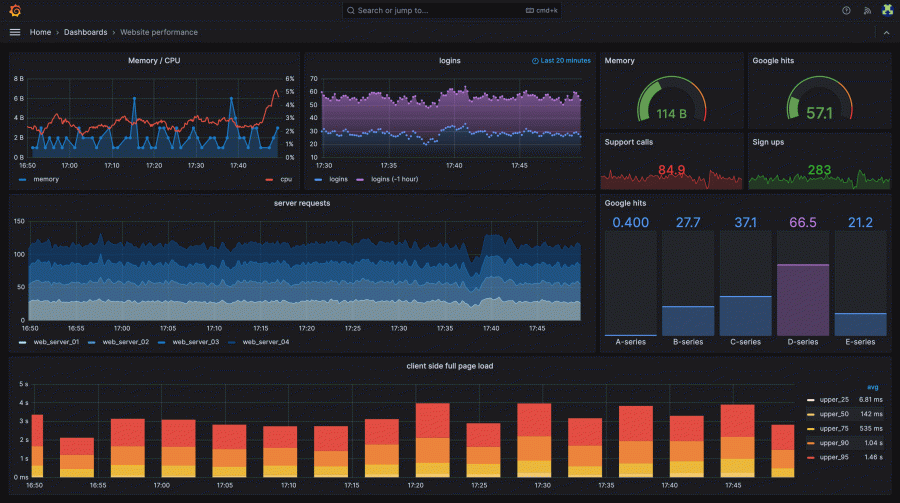

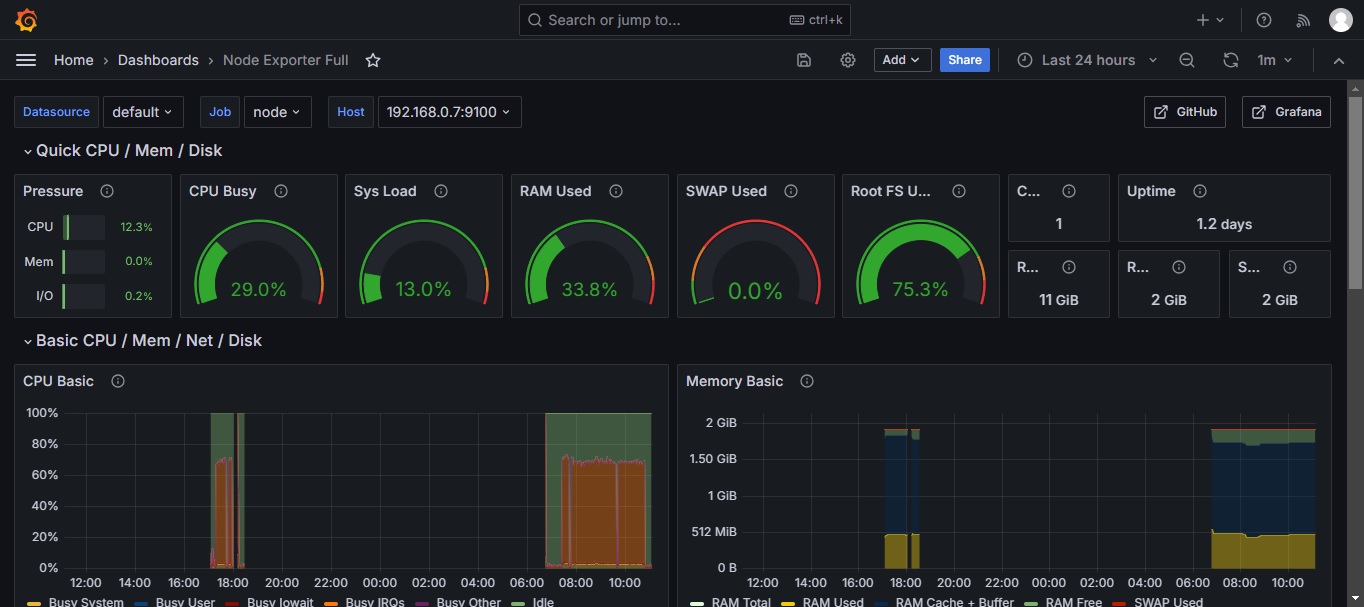

Grafana

Grafana empowers you to turn raw data into actionable insights. By providing a centralized platform for visualization, exploration, and alerting, it helps you make data-driven decisions and optimize your systems.

Here's how to spin up Grafana using docker-compose.

version: "3.8"
services:
  grafana:
    image: grafana/grafana
    container_name: grafana
    restart: unless-stopped # Ensure grafana runs even if docker restarts
    ports:
     - '3000:3000'  # Allows to access UI in port 3000.
    volumes:  # Without defined volumes data will be lost when volume restarts.
      - grafana-storage:/var/lib/grafana # Mounts a local directory (grafana-storage) to
# a directory(var/lib/grafana) inside the container.
volumes:
  grafana-storage: {}

Prometheus

Prometheus provides a robust and efficient solution for monitoring and alerting. Here's how to spin up Prometheus with a docker-compose file.

services:
  prometheus:
    image: prom/prometheus
    container_name: prometheus
    command: # Defines a command to be executed inside the container.
      - '--config.file=/etc/prometheus/prometheus.yml' # Tells prometheus to use the configuration file
# located at /etc/prometheus.yml
    ports:
      - 9090:9090
    restart: unless-stopped
    volumes:
      - ./prometheus:/etc/prometheus # Mounts the local directory we are to a directory inside the container.
# This allows to manage of configuration files in the container from the host.
      - prom_data:/prometheus  # Mounts a local directory to a container directory.
# This way Prometheus can save its time series data.
volumes:
  prom_data:

Prometheus.YML

Prometheus.yml is the configuration file that defines the core behavior of a Prometheus server. It dictates how Prometheus collects, stores, and processes metrics.

global:
  scrape_interval: 15s
  scrape_timeout: 10s
  evaluation_interval: 15s
alerting:
  alertmanagers:
    - static_configs:
      - targets: []
      scheme: http
      timeout: 10s
      api_version: v1
scrape_configs:
  - job_name: prometheus
    honor_timestamps: true # Instructs Prometheus to preserve the original timestamps of scraped metrics.
    scrape_interval: 15s
    scrape_timeout: 10s
    metrics_path: /metrics
    scheme: http
    static_configs:
      - targets:
        - localhost:9090
  - job_name: "node" # Scrape metrics from node-exporter
    static_configs:
      - targets: ["192.168.0.7:9100"]

Node Exporter

Node Exporter is a crucial component in the Prometheus ecosystem, primarily designed to collect and expose metrics about the underlying host machine.

It's essentially a bridge between your hardware and the powerful analysis capabilities of Prometheus.

services:
  node-exporter:
    image: prom/node-exporter: latest
    container_name: node-exporter
    restart: unless-stopped
    volumes:
      - /proc:/host/proc:ro # Mounts the local /proc directory to the containers /proc
# in read-only mode. So the container could read data from the proc.
      - /sys:/host/sys:ro
      - /:/rootfs:ro # Mounts the entire file system in read-only mode.
    command:
      - '--path.procfs=/host/proc' # Tells the container where to look for the proc directory.
      - '--path.rootfs=/rootfs'
      - '--path.sysfs=/host/sys'
      - '--collector.filesystem.mount-points-exclude=^/(sys|proc|dev|host|etc)($$|/)' # Excludes mount points from
# collection.
    ports:
      - 9100:9100

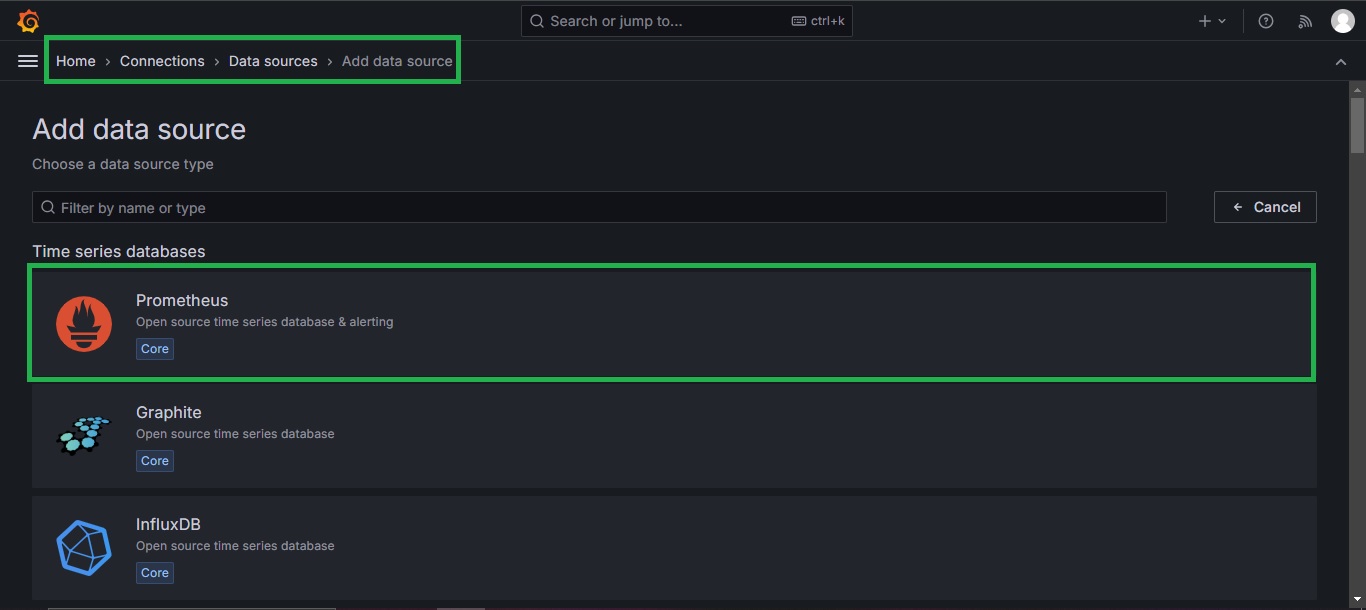

Grafana: Data Sources

Once logged in to Grafana by browsing to your-container-ip-addres:grafana-port Prometheus can be added as a data source by navigating to Home > Connections > Data Sorces > Add Data Source.

Then the URL where Prometheus is active must be provided. Usually your-container-ip-address: prometheus-port.

Importing a Dashboard

Importing a Dashboard is arguably the fastest way to get started with Grafana. To do that navigate to Home > Dashboards > New.

Node Exporter Full

By providing a starting point for system monitoring, the Node Exporter Full dashboard accelerates the process of gaining valuable insights from your infrastructure.

Next

Deploying a web application with Kubernetes. How to deploy a multi-tier app with Kubernetes.

Deploying a web application with Kubernetes

60 minutes

This project demonstrates the deployment of a multi-tier application on Kubernetes, a container orchestration platform. The application consists of a MySQL database and a PHP backend service.

Methodology

Containerized Application deployment using Dockers and Kubernetes to illustrate containerization best practices. All the required services for the proper functioning of the application were created from scratch.

Table Of Content

• Persistent Volme Claim
• MySQL Database Deployment
• PHP Deployment
• Load Balancer Service
• MySQL Database Service
• Deployment Script
• Conclusion

Persistent Volme Claim

The provided YAML snippet is a well-structured Persistent Volume Claim (PVC) requesting persistent storage in Kubernetes.

This PVC effectively requests 10 Gigabytes of persistent storage with ReadWriteOnce access for a single Pod at a time. The standard-two StorageClass dictates where and how this storage will be provisioned.

# Persistent Volume Claim to request persistent storage to Kubernetes
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: mysql-datos
spec:
  accessModes:
  - ReadWriteOnce # Read write acces for one pod at a time
  resources:
    requests:
      storage: 10Gi # Request 10 Gb of storage
  storageClassName: standard-rwo # Pre configured sorage class that proviions Read write once volumes

MySQL Database Deployment

This deployment creates pods running a MySQL container with persistent storage for the database data. The provided code snippet defines a deployment for a MySQL database container in Kubernetes.

# Mysql deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mysql
spec:
  selector:   # Select pods with the label "mysql"
    matchLabels:
      app: mysql
  template: # a blueprint for creating pods
    metadata: # Data about the data
      labels:  # Identify pods
        app: mysql
    spec:
      containers:
      - image: alemorales9011935/projeto-database:1.0 # Docker image used for the deployment
        args:
        - "--ignore-db-dir=lost+found"  # Ignores previous deployments
        imagePullPolicy: Always # Ensure the image is pulled even if exists locally
        name: mysql
        ports:
        - containerPort: 3306
          name: mysql

        volumeMounts:
        - name: mysql-dados
          mountPath: /var/lib/mysql/ # where the containers will be storaged
      volumes:
      - name: mysql-dados
        persistentVolumeClaim:
          claimName: mysql-dados

PHP Deployment

The provided YAML defines a Kubernetes deployment configuration for a PHP application. This YAML describes a deployment that creates six pods running the container image alemorales9011935/projeto-backend:1.0. These pods will be labeled with app: php and will expose their application on port 80.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: php
  labels:
    app: php
spec:
  replicas: 6 # Amounts of pods to be created
  selector:
    matchLabels:
      app: php
  template:
    metadata:
      labels:
        app: php
    spec:
      containers:
      - name: php
        image: alemorales9011935/projeto-backend:1.0
        imagePullPolicy: Always # Always pulls the image from the registry even if it exists locally.
        ports:
        - containerPort: 80

Load Balancer Service

The configuration below defines a php-Service. This configuration creates a LoadBalancer service for your PHP application.

Kubernetes will work with your cloud provider to set up an external load balancer that will distribute traffic across multiple pods running the PHP application.

The external IP address for accessing the service will be dynamically assigned by the cloud provider and can be retrieved later using kubectl get service php.

apiVersion: v1
kind: Service # Defines the type of kubernetes object
metadata:
  name: php
spec:
  selector: # This service will find and route traffic to pods that have the label app: php.
    app: php  # Select pods with the label "app: php"
  ports:
  - port: 80 # The port users will acces from outside the cluster
    targetPort: 80 # The port php application listens
  type: LoadBalancer # Type of Service

MySQL Database Service

The configuration below creates a ClusterIP Service for a MySQL database. A ClusterIP service is only accessible from within the Kubernetes cluster. Pods within the cluster can access the MySQL service at mysql-connection on port 3306.

apiVersion: v1
kind: Service
metadata:
  name: mysql-connection
spec:
  ports:
  - port: 3306
  selector:
    app: mysql
  clusterIp: None

Deployment Script

The provided script is a Bash script for deploying the project.

#!/bin/bash

echo "Creating images..."

docker build -t alemorales9011935/projeto-backend:1.0 backend/.  # Build docker image.
Creates a self-contained executable package for running an application
docker build -t alemorales9011935/projeto-database:1.0 database/.

echo "Pushing images..."

docker push alemorales9011935/projeto-backend:1.0 # Uploading a completed Docker image to a Docker registry.
docker push alemorales9011935/projeto-database:1.0

echo "Creating Services..."

kubectl apply -f ./services.yml --validate=false # Figure out how to achieve
the desired state of the infrastucture we define.

echo "Criating Deployment"

kubectl apply -f ./deployment.yml --validate=false # Controls the validation behaviour.

Conclussion

This repository serves as a solid foundation for Kubernetes deployment.

Web App Deployment Automation: Bash

Manually deploying a web server involves running several commands in a specific order. A Bash script can automate these steps, saving you time and effort, especially if you need to deploy Apache on multiple servers.

Web Server Deployment

This Bash script provides a streamlined and automated approach to deploying an Apache web server.

#!/bin/bash
----------------------------------------------------------------------------------
echo "Updating and installing apache2 and unzip..."
apt-get update
apt-get upgrade -y
apt-get install apache2 -y
apt-get install unzip -y
----------------------------------------------------------------------------------
echo "Getting the website from a remote repo..."
cd /tmp
wget https://github.com/denilsonbonatti/linux-site-dio/archive/refs/heads/main.zip
----------------------------------------------------------------------------------
echo "Unziping the file and pasting into the Apache directory..."
unzip main.zip
cd linux-site-dio-main
cp -R * /var/www/html/
----------------------------------------------------------------------------------

Conclussion

Scripts ensure consistency, reduce errors, and save time compared to manual deployments. The script can be easily customized to fit your specific needs and integrated into larger automation workflows.

Setting developing environment with Vagrant

60 minutes

Docker Swarm manages many containers. It auto-deploys across machines and reschedules containers if a machine fails, keeping your application running. This simplifies managing large container deployments.

Table of Contents

• Vangrantfile
• Docker script
• Master node script
• Worker node script

Vagrant File

First, we must create a Vagrantfile; which is a configuration file used with Vagrant, a tool for managing virtual machines. It acts as a blueprint for setting up your development environment. In this case, we use it to create and set up 3 virtual machines in combination with bash scripts.

# -*- mode: ruby -*-
# vi: set ft=ruby  :

# Creates an object of 3 virtual machines with memory 1024, unique IP, and assigns a docker image

machines = {
  "master" => {"memory" => "1024", "cpu" => "1", "ip" => "100", "image" => "bento/ubuntu-22.04"},
  "node01" => {"memory" => "1024", "cpu" => "1", "ip" => "101", "image" => "bento/ubuntu-22.04"},
  "node02" => {"memory" => "1024", "cpu" => "1", "ip" => "102", "image" => "bento/ubuntu-22.04"}
}
# Sets the Vagrant configuration version to "2"
Vagrant.configure("2") do |config|

  machines.each do |name, conf|
# This line defines a virtual machine within the Vagrant configuration
    config.vm.define "#{name}" do |machine|
# Sets the box (pre-built VM image) for the virtual machine.
      machine.vm.box = "#{conf["image"]}"
      machine.vm.hostname = "#{name}"
# Configures the network settings for the virtual machine.
      machine.vm.network "private_network", ip: "10.10.10.#{conf["ip"]}"
      machine.vm.provider "virtualbox" do |vb|
        vb.name = "#{name}"
# Memory allocation
        vb.memory = conf["memory"]
        vb.cpus = conf["cpu"]

      end
      machine.vm.provision "shell", path: "docker.sh"

      if "#{name}" == "master"
        machine.vm.provision "shell", path: "master.sh"
      else
        machine.vm.provision "shell", path: "worker.sh"
      end

    end
  end
end

Docker Script

This Vagrant script simplifies Docker and Docker Compose setup for containerized workflows. It automates installation and ensures proper user permissions for Vagrant users.

#!/bin/bash
curl -fsSL https://get.docker.com | sudo bash
sudo curl -fsSL "https://github.com/docker/compose/releases/download/1.25.4/docker-compose-$
(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
sudo chmod +x /usr/local/bin/docker-compose
sudo usermod -aG docker vagrant

Master Node Script

This script also runs in the vagrant file. It initializes a Docker Swarm cluster in manager mode and generates a join token for worker nodes. The script stores the join token in a file on the manager node.

#!/bin/bash
sudo docker swarm init --advertise-addr=10.10.10.100
sudo docker swarm join-token worker | grep docker > /vagrant/worker.sh

Worker Script

This line of code instructs a machine to join an existing Docker Swarm cluster as a worker node. This code instructs a worker node to join a Docker Swarm cluster managed by a node at 10.10.10.100:2377 using the provided join token.

docker swarm join --token
SWMTKN-1-3pj8k0i4tn77bd93a0yxhgh36hxuef5q5oyg1732rztnfy29ll-a94q0ipwgrjs4xikzyb4yb3n5 10.10.10.100:2377

Conclusion

Docker Swarm tames complex container deployments. It automates deployments, keeps apps running during failures, and efficiently uses resources, making container management a breeze.

Security

DevOps, focusing on speed and efficiency, can inadvertently introduce security risks if not managed carefully.

Infrastructure as Code (IaC)

Infrastructure as Code (IaC) brings significant efficiency, consistency, and reproducibility advantages.

However, it also introduces new security challenges such as the amplification of errors and increased attack surface due to the high amount of pieces interconnected in distributed systems.

This playbook secures the SSH server on target hosts.

- name: Secure SSH Server
  hosts: servers  # This playbook targets hosts in the "servers" group.
  become: yes     # Tasks require elevated privileges (sudo).

  tasks:
    # Disable password authentication (more secure with key-based auth)
    - name: Disable password authentication
      lineinfile:
        path: /etc/ssh/sshd_config
        regexp: '^PasswordAuthentication yes'  # Find lines starting with "PasswordAuthentication yes"
        line: 'PasswordAuthentication no'      # Replace with "PasswordAuthentication no"

    # Require SSH key-based authentication for improved security
    - name: Require SSH key-based authentication
      lineinfile:
        path: /etc/ssh/sshd_config
        regexp: '^PubkeyAuthentication no'     # Find lines starting with "PubkeyAuthentication no"
        line: 'PubkeyAuthentication yes'       # Replace with "PubkeyAuthentication yes"

    # Set strong ciphers for secure encryption
    - name: Set strong SSH ciphers
      lineinfile:
        path: /etc/ssh/sshd_config
        regexp: '^Ciphers'                     # Find lines starting with "Ciphers"
        line: 'Ciphers aes256-gcm@openssh.com,aes128-gcm@openssh.com,chacha20-poly1305@openssh.com'  # Replace with recommended ciphers

    # Set strong MACs for message authentication
    - name: Set strong MACs
      lineinfile:
        path: /etc/ssh/sshd_config
        regexp: '^MACs'                        # Find lines starting with "MACs"
        line: 'MACs hmac-sha2-512-etm@openssh.com,hmac-sha2-256-etm@openssh.com,umac-128@openssh.com'  # Replace with recommended MACs

    # Restart SSH service to apply changes
    - name: Restart SSH service
      service:
        name: sshd
        state: restarted

Application Security

Applications often handle sensitive information such as financial data, personal information, and intellectual property. A compromised application can lead to significant data breaches with severe consequences.

Network Security

Network security prevents unauthorized access to confidential data, protecting sensitive information from theft or misuse.

Cloud Security

Cloud environments often store critical data, making them prime targets for cyberattacks. A breach can lead to significant financial losses, reputational damage, and legal consequences.

Security Testing

Security testing helps uncover weaknesses and vulnerabilities in software that could be exploited by malicious actors. Regular security testing can help prevent data breaches and other security incidents by proactively identifying and mitigating risks.

DevSecOps Practices

DevSecOps is a software development approach that integrates security into the entire development lifecycle.

Additional Skills

Disaster Recovery

60 minutes

A Disaster Recovery Plan (DRP) and a Business Continuity Plan (BCP) are crucial for the survival and resilience of any organization. They serve as a roadmap to navigate through unforeseen challenges and minimize disruptions.

Example Disaster Recovery Plan: Small E-commerce Business

Introduction

This Disaster Recovery Plan (DRP) outlines procedures for recovering IT systems and restoring business operations in case of a disaster affecting [Company Name]. The plan aims to minimize downtime, data loss, and financial impact.

Disaster Recovery Objectives

1. RTO (Recovery Time Objective): Restore critical systems within 4 hours of a disaster.
2. RPO (Recovery Point Objective): Maximum data loss is limited to 24 hours.

Disaster Recovery Team

1. DR Coordinator: [Name], [Title]
2. IT Support: [Names and Roles]
3. Management: [Names and Roles]
4. Communications: [Names and Roles]

Disaster Recovery Procedures

• Phase 1: Notification and Activation. Upon incident notification, the DR Coordinator activates the DR team. Please initiate a communication plan to let key personnel and stakeholders know. Activate the disaster recovery site if necessary.

• Phase 2: Assessment and Prioritization Assess the extent of the disaster and its impact on business operations. Prioritize system and data recovery based on criticality.

• Phase 3: Recovery and Restoration Restore critical systems from backups. Implement data recovery procedures. Reconfigure network infrastructure. Test system functionality.

• Phase 4: Resumption of Operations Gradually restore business operations. Conduct system and data verification. Initiate business continuity plans.

Backup and Recovery Procedures

• Daily backups of critical data to an offsite location.
• Weekly full system backups.
• Regular testing of backup and restore procedures.
• Use of cloud-based backup for additional redundancy.

Communication Plan

• Primary and secondary contact information for key personnel.
• Notification procedures for employees, customers, and partners.
• Communication channels (email, SMS, phone).

Disaster Recovery Testing

• Conduct regular tabletop exercises and full-scale tests.
• Document test results and lessons learned.
• Update the DR plan based on test findings.

Appendices

• Contact list
• Hardware and software inventory
• Network diagrams
• Backup schedules
• Detailed recovery procedures

Next

Metrics and Analytics. Which metrics are important for DevOps and how to calculate them?

Metrics and Analytics

30 minutes

Metrics and analytics are the lifeblood of DevOps. They provide the data-driven insights needed to optimize software delivery pipelines, improve efficiency, and enhance overall product quality.

Metrics

These metrics provide a foundation. The specific metrics you track will depend on your organization's goals and industry.

Next

Databases. How to design, model and deploy a MySQL Database.

DBMS: Data Base Management System

120 minutes

Introduction

DBMS are important to software engineers because they provide efficient, scalable, and secure ways to store, manage, and retrieve data, enabling the development of reliable, data-driven applications

Table of Contents

1. Prerequisites
2. Connecting to a MySQL Database Via CLI
3. Modeling And Designing A Database With MySql Workbench
4. Deploying A Database Via Script
5. Inserting Data Via Script
6. Creating A View For Easy Acces.
7. Conclusion

Prerequisites

1. MySQL Community Server: MySQL Community Server is a free, open-source version of the MySQL relational database management system, widely used for web applications and data-driven platforms, offering essential database features for developers and organizations.
2. MySQL Workbench: MySQL Workbench is a visual design tool for MySQL databases, providing a unified interface for database modeling, SQL development, administration, and data migration tasks.

Connecting Via CLI

The CLI(command line interface) provides a direct way to interact with the database server.

mysql -u root -p

Modeling With MySql Workbench

Modeling with MySQL Workbench is valuable because it allows developers and database administrators to visually design, create, and manage database schemas, making it easier to understand complex relationships, generate SQL scripts, and ensure database structure consistency before implementation.

SQL Categories

In SQL, there are five main categories of commands, each serving a specific purpose in managing and interacting with databases. By understanding these different categories of SQL commands, you can effectively manage your database, ensuring proper data structure, manipulation, security, and retrieval capabilities.

Transactions

Here’s an example of a transaction in SQL that includes all possible scenarios: COMMIT, ROLLBACK, SAVEPOINT, and ROLLBACK TO SAVEPOINT. This transaction simulates a banking system where we perform a few account updates, use a savepoint, and handle an error that requires a rollback to a specific point.

-- Start the transaction
BEGIN TRANSACTION;

-- Step 1: Deduct $500 from Account A
UPDATE accounts
SET balance = balance - 500
WHERE account_id = 'A';

-- Step 2: Set a SAVEPOINT after deducting from Account A
SAVEPOINT deduct_from_A;

-- Step 3: Add $500 to Account B
UPDATE accounts
SET balance = balance + 500
WHERE account_id = 'B';

-- Step 4: Set another SAVEPOINT after adding to Account B
SAVEPOINT add_to_B;

-- Step 5: Check balances to validate transaction
SELECT account_id, balance FROM accounts WHERE account_id IN ('A', 'B');

-- Let's assume we find an issue here (e.g., Account B is overdrawn due to a previous transaction error),
-- so we decide to ROLLBACK to the savepoint where we had only deducted from Account A.

-- Step 6: Rollback to the savepoint after deducting from Account A
ROLLBACK TO deduct_from_A;

-- Step 7: Now, decide whether to commit the transaction (if everything is fine), or rollback the entire thing
-- In this case, let's assume we fix the issue and commit the transaction
COMMIT;

Joins

DDL

Windows Functions

Functions

Where Clausule

Conclusion

This repository has equipped you with a comprehensive understanding of MySQL, from its core concepts to advanced functionalities. You've explored data manipulation, querying, security, administration, and even how to leverage views for optimized data access.

SDLC & Testing

10 minutes

The Software Development Lifecycle is a process used to create software that meets the stakeholders' requirements. It comprises six core phases: Planning, Design, Development, Testing, Deployment, and Maintenance.

Testing Throughout the SDLC

Agile Methodologies Differences

• Scrum has a fixed-length Sprint cycle, while Kanban is continuous.
• Scrum has dedicated review and retrospective ceremonies, while Kanban uses daily stand-up meetings for continuous improvement.
• Testing in Scrum is integrated throughout the Sprint, while Kanban testing is continuous throughout the workflow.

Test Techniques, Types, and Levels

• Execution: manual or automated.

• Techniques: Specific methods used to execute tests - White Box, Black Box, Experience-based.

• Types: Categories of testing based on different objectives - Functional, Non-functional.

• Levels: Stages of testing within the software development lifecycle - Unit, Integration, System, Performance, Acceptance, UI.

• Design Strategies: Approaches used to create test cases - a subset of black-box, white-box, and experience-based. (not in the image).

Functional

Evaluates the functions that a component or system should perform.

Non-Functional

Evaluates attributes other than functional characteristics of a component or system. It tests “how well the system behaves”.

Black-box

Also known as specification-based techniques. They are based on the behavior of the test object without reference to its internal structure. Therefore, they are independent of how the software is implemented. Consequently, if the implementation changes, but the required behavior stays the same, the test cases are still useful.

Example: Decision Table Testing

Decision table testing is a method to identify test cases based on input conditions and their corresponding actions/outputs, especially used for complex requirements.

Why is it important?

Decision tables provide comprehensive test coverage by considering all input combinations, helping uncover defects while improving test case design efficiency and clarity.

How It Works

1. Identify conditions and actions: Determine the input conditions and potential outputs (actions) based on the system's behavior.

2. Create a decision table: Construct a table with conditions as columns and rows representing different combinations of conditions.

3. Define rules: Specify the actions to be performed for each combination of conditions.

4. Design and execute test cases: Create test cases based on the defined rules, then compare the results with the expected outcomes.

Limitations

Decision table testing can become impractical for systems with many conditions, leading to an overwhelming number of test cases due to the exponential growth in possible combinations.

White-box

Also known as structure-based techniques. They are based on analyzing the test object’s internal structure and processing. As the test cases are dependent on how the software is designed, they can only be created after the design or implementation of the test object.

Example: Branch Testing

Branch testing is a white-box testing technique that ensures every possible path through a code's decision points is executed at least once. A decision point is typically an 'if' or 'switch' statement where the program's flow can diverge based on the condition's outcome.

Branch testing aims to cover all potential branches or outcomes of each decision point, guaranteeing that all reachable code is executed. Any set of test cases achieving 100% branch coverage also achieves 100% statement coverage (but not vice versa).

Why is Branch Testing Important?

Comprehensive Coverage - testing all branches helps to ensure that all possible code paths are exercised, reducing the likelihood of hidden bugs.

How to Use Branch Testing

1. Identify Decision Points: Locate all if, switch, and similar statements in the code. 2. Determine Branches: For each decision point, identify the possible outcomes or branches. 3. Design Test Cases: Create test cases that specifically target each branch to ensure it's executed.   4. Execute Test Cases: Run the test cases to cover all identified branches. 5. Measure Coverage: Calculate the branch coverage percentage to assess test effectiveness.

Limitation

While high branch coverage is good for testing, 100% branch coverage can still miss verifying the correct behavior of the code if the test cases lack proper assertions or only use trivial input values.

Experience-based

They use testers' knowledge and experience to design and implement test cases. Experience-based testing can detect defects that may be missed with black-box and white-box. Hence, they are complementary to the other techniques.

Example: Error Guessing

Error Guessing is a software testing strategy where testers use their experience and intuition to predict potential errors or defects in an application. It's an informal approach based on the tester's ability to anticipate issues from past encounters with similar systems.

Why It Is Important

Testers can focus on areas that might not be covered by formal test cases, providing a different perspective on the software.

How It Works

Error guessing is a relatively unstructured process. Testers typically follow these steps:

1. Analyze the software: Understand the system's functionality, requirements, and design.
2. Identify potential problem areas: Based on experience, intuition, and domain knowledge, guess where errors might occur.
3. Design and execute test cases: Create and run test cases to specifically target these areas.
4. Report and track defects: Document found issues and track their resolution.

Important Note: While error guessing is valuable, it should not replace structured testing methods. A combination of both approaches is essential for comprehensive test coverage.

API Testing

Application Program Interface (API) testing is a type of software testing that validates the behavior and performance of an application program interface.

Why It Is Important

API testing evaluates an API's ability to handle increased load and traffic. Testers can identify bottlenecks, latency issues, and resource constraints to optimize performance and ensure it can handle the expected user load.

How it Works

1. Understand the API: Understand the API's functionalities, endpoints, data formats, authentication methods, and expected behaviors.
2. Create Test Cases: Develop test cases covering various scenarios, including positive, negative, boundary value, performance, and security tests.
3. Set Up Test Environment: Establish the necessary environment with appropriate tools, data, and API access.
4. Execute Test Cases: Run the tests.
5. Analyze Results: Evaluate test outcomes, compare actual results with expected results, and generate reports.
6. Iterate and Improve: Address identified defects, refine test cases, and automate where feasible.

API Testing vs. API Method Testing

API testing covers all the testing activities on an API to ensure it functions correctly, reliably, and securely. It includes functional testing, performance testing, security testing, and more. On the other hand, API method testing focuses on testing the individual operations or endpoints of an API, such as creating, reading, updating, and deleting operations on a resource.

To summarize:

• API testing is the overall process of evaluating an API.
• API method testing is a specific type of API testing that targets individual API endpoints.

In essence, API method testing is a component of API testing, just as unit testing is a component of software testing.

Test Automation

Test automation uses software to execute test cases, validate results, and provide feedback. It replaces manual testing efforts, particularly for repetitive and time-consuming tasks, thereby enhancing efficiency and accuracy.

How It Works

1. Test Case Selection

Identify test cases suitable for automation, prioritizing those with high execution frequency, critical business logic, or prone to human error.

For demonstration, the test case below was created based on the sample URL Selenium provides:

Test Case: Simple Form Submission with Selenium

Test Objective: Verify that the script successfully fills a text box and submits a form on the Selenium Dev website.

Pre-Requisites:

1. Java installed
2. Selenium WebDriver libraries downloaded and configured
3. Chrome browser installed (or another browser supported by Selenium)

Test Steps:

1. Run SeleniumJunitTest.java (replace SeleniumJunitTest.java with the name of the test file).

2. Verify Chrome opens the URL and script interacts with the "my-text" box, entering "Selenium".

3. Confirm the script clicks the submit button and retrieves a confirmation message.

4. Check that Chrome closes after execution.

Pass/Fail Criteria:

• Pass if all expected results are observed.
• Fail if any are missing or errors occur.

2. Tool Selection

Choose test automation tools or frameworks that align with project requirements, team expertise, and budget constraints. Consider factors such as ease of use, test coverage, reporting capabilities, and integration with other tools.

• Tools: Provides functionalities to automate test actions. It interacts with UI elements directly. Examples: Selenium (for web browsers), Appium (for mobile apps), and SoapUI (for SOAP and REST API tests).

• Frameworks: Provides a structure and best practices for building and managing test scripts. It provides reusable components and libraries. Examples: Robot Framework, Playwright, TestNG.

3. Test Environment Setup

Establish a stable test environment to ensure reliable test execution.

4. Test Script Development

Selenium will be used for demonstration purposes.

4.1 Creating a Maven Project (Optional but Recommended):

Selenium WebDriver can be used without a dedicated build system. However, using a build system like Maven offers advantages such as dependency management and project organization. Here's how to create a Maven project in IntelliJ IDEA Community:

1. Open IntelliJ IDEA Community.
2. Click "New" -> "Project."
3. Select "Maven" and choose a project location. Click "Next."
4. Fill in the "Group ID," "Artifact ID," and "Version." Click "Finish."

4.2 Adding Selenium Dependency:

The following dependency should be added to the pom.xml file, inside the <dependencies> section:

<dependency>
    <groupId>org.seleniumhq.selenium</groupId>
    <artifactId>selenium-java</artifactId>
    <version>4.x.x</version> //Replace with latest version
</dependency>

This line tells Maven to download the Selenium Java library, which provides the necessary classes for interacting with web browsers.

In some situations, it's common to use test frameworks like JUnit or TestNG along with Selenium for writing and executing test cases to improve organization and readability. For this script, JUnit was implemented.

<dependency>
    <groupId>org.junit.jupiter</groupId>
    <artifactId>junit-jupiter-api</artifactId>
    <version>5.x.x</version> //Replace with latest version
    <scope>test</scope>
</dependency>

4.3 Folder Structure

Maven provides a standardized directory structure for Java projects.

Core Directories

1. Directories containing software logic:

• src/main/java: Contains the project's main source code.

• Package: Organizes code into packages based on functionality or modules.

• Classes: Java classes implementing the application's logic.

• src/test/java: Houses the project's test code.

• Package: Similar to src/main/java but for test classes.

• Test classes: JUnit or TestNG test classes.

2. Other directories:

• src/main/resources: Stores configuration files, properties files, and other static resources used during compilation.
• src/test/resources: Stores test-specific resources like test data or configuration files.
• target: This directory is used by Maven to store generated output, such as compiled classes, test results, and final artifacts (JAR, WAR, etc.).
• pom.xml: The project's configuration file, defining dependencies, build process, and other project-related settings.

4.4 Build the Script

This example demonstrates the basic test script using Selenium WebDriver in Java. It opens the URL, finds the text box, inserts the credential and clicks the "submit" button.

import org.junit.After;
import org.junit.Before;
import org.junit.Test;
import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.time.Duration;

public class SeleniumJunitTest {

    private WebDriver driver;

    @Before
    public void setUp() {
        // Create a new Chrome WebDriver instance
        driver = new ChromeDriver();

        // Set implicit wait (optional)
        driver.manage().timeouts().implicitlyWait(Duration.ofMillis(500));
    }

    @Test
    public void testSeleniumForm() {
        //  Navigate to the URL being tested
        //  In this case, this is the test URL provided by Selenium
        driver.get("https://www.selenium.dev/selenium/web/web-form.html");

        //  Find the 'text box' and 'button' elements by their locators
        WebElement textBox = driver.findElement(By.name("my-text"));
        WebElement submitButton = driver.findElement(By.cssSelector("button"));

        //  The script will automatically type "Selenium" and click the page button
        textBox.sendKeys("Selenium");
        submitButton.click();

        //  Find the element displaying the message by its ID
        // Wait for message element to be visible (recommended)
        WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(30));
        WebElement message = wait.until(ExpectedConditions.visibilityOfElementLocated(By.id("message")));

        String messageText = message.getText();

    }

    @After
    public void tearDown() {
        //  Close the browser window
        driver.quit();
    }
}

5. Test Execution and Analysis

Integrate test automation into the development lifecycle, and analyze test results. Use tools like Jira for bug tracking and report.

6. Continuous Improvement

Refine test automation processes to optimize efficiency and effectiveness.

Conclusion

In summary, test automation is essential for improving software quality, efficiency, and speed while reducing costs and risks.

ForgeGuard - Functionality Testing - Login

Estimated Time: 2 hours
Tech Stack: Selenium - Java - Cucumber
Keywords: Automation - Testing - QA - BDD
Experience Level: Beginner - Advanced

Why Web Testing

The main use case for Web Browser Automation is regression testing. Most companies today's have websites, and they deploy new code every day. This new code is destined to correct issues or add new functionalities. The problem is that often times this new code mess up things that were already functioning correctly.

Regression testing notifies that this not happen by verifying all the applications previous functionalities before new code is deployed.

Objective

Create automated test cases using Selenium, Java, and Cucumber to verify the login page's functionality of "https://practice.expandtesting.com/login". Login is arguably the most used and common functionality of all web applications. By mastering this functionality one can ensure ~80% of the required knowledge to perform this activity.

These tests will:

• Test login with valid credentials.
• Test login with invalid credentials.
• Validate error messages for incorrect input.
• Verify successful redirection after a valid login.

Encouragement

Progress in automation testing requires persistence, and each effort lays a solid foundation for future success.

Table Of Contents

1. Functionality Testing
2. Step 01 Understanding Automation Workflow(Java, Selenium,Cucumber)
3. Step 02 Environment Set Up
4. Step 03 IDE and Plugin Configuration Set Up
5. Step 04 Project Initialization Set Up
6. Step 05 Core Library Installation Set Up
7. Step 06 Basic Selenium Test Set up
8. Step 07 Basic Cucumber Set Up
9. Step 08 Understand Automation Logic: Selenium
10. Step 09 Scripting
11. Conclusion

Functionality Testing

Functionality testing is the first step of the automation journey as it is the main objective of testing in general to verify that a software application performs as intended, meeting all specified functionalities and user requirements, ensuring the delivered product is reliable and free from major defects by identifying and fixing issues early in the development cycle.

Step 01 Understanding Automation Workflow(Java, Selenium,Cucumber)

When automating how someone interacts with a website—Java, Selenium, and Cucumber each play a unique role in making this happen.

• Java is the programming language you use to write instructions for the automation.
• Selenium acts as the "robot" that opens a browser, clicks buttons, fills out forms and verifies things on the webpage as per your Java code.
• Cucumber lets you write those instructions in plain English (called feature files) using a style called Behavior-Driven Development (BDD).

Instead of writing complex code for "login with valid credentials," it can be written as Given I am on the login page, When I enter valid credentials, Then I should see the dashboard. Cucumber links this plain English text to your Java code (called step definitions) that uses Selenium to perform the actual actions in the browser. Together, they make testing clear, readable, and efficient.

Set Up

After understanding the stack workflow, it's time to set up all these technologies in the local environment. The setup involves several moving parts and depending on experience can take between 1-15 days to complete. That is why it's helpful to split it into steps such as:

1. Environment Setup
2. IDE and Plugin Configuration SetUp
3. Project Initialization SetUp
4. Core Library Installation Setup
5. Basic Selenium Test Setup
6. Basic Cucumber SetUp

Step 02 Environment Setup

Objective: Install and verify foundational tools. Tasks:

• Install Java and ensure it’s properly configured with java -version. Without this: You won't be able to write or execute any Java code, as Java is the foundation of the entire project.

• Install the JDK and confirm its functionality javac -version.

• Install Maven and verify it mvn -v. Without this: You’ll need to manually download and manage all dependencies (like Selenium, JUnit, and Cucumber) which is time-consuming and error-prone.

Step 03 IDE and Plugin Configuration

Objective: Set up the development environment. Tasks:

• Install IntelliJ IDEA or your preferred IDE. Without this: You’ll lack a professional development environment to write, debug, and run your code efficiently, making development harder and slower.

Note: Intellij comes with Java and Maven installed, however, their system-wise installation is needed to be able to execute mvn commands from the terminal.

• Add the Cucumber for Java Plugin to enable Gherkin and Cucumber support.
• Cucumber-java: Without this: Step definitions written in Java won’t be supported, breaking the connection between feature files and the automation logic.
• Configure the project JDK in the IDE. IntelliJ automatically does this.

Step 04 Project Initialization

Objective: Create and configure the project. Tasks:

• Use plain Maven project builder or Maven archetypes to create an empty cucumber project. The code below can be used to create a cucumber project archetype from a pwsh terminal.

mvn archetype:generate `
  "-DarchetypeGroupId=io.cucumber" `
  "-DarchetypeArtifactId=cucumber-archetype" `
  "-DarchetypeVersion=7.20.1" `
  "-DgroupId=<project-name>" `
  "-DartifactId=<project-name>" `
  "-Dpackage=<project-name>" `
  "-Dversion=1.0.0-SNAPSHOT" `
  "-DinteractiveMode=false"

Step 04.01 Project Structure

Structure the project directories correctly is crucial for it to work. After executing the commands above the project structure should look like the example below. This structure is mandatory for it to work properly.

src
├── main
│   └── java
│       └── <Project-Name>
│           └── [Production code files]
├── test
    ├── java
    │   └── <Project-Name>
    │       └── RunCucumberTest.java
    │       └── [Step definitions here]
    ├── resources
        └── <Project-Name>
            └── [Feature files]

Step 05 Dependencies Set Up

The test automation environment contains several moving parts. To function properly all those moving parts needs to be declared in the POM.xmlfile (backbone of the Automation Testing Project) for maven to build the project properly.

Step 05.01 POM File Template

Using the mvn archetype above installs cucumber dependencies but not Selenium dependencies nor the Web driver (controls the browser) or other plugins required. Failing to have all required dependencies and proper configurations means the project will face issues. Here's a pom file template it can be used to avoid misconfigurations.

<?xml version="1.0" encoding="UTF-8"?>
<!-- This is a Maven POM file template for a Selenium + Cucumber test automation project -->
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion> <!-- Version of the POM model -->

    <!-- General project information -->
    <groupId>org.example</groupId> <!-- A unique ID for your project, usually your organization's domain in reverse -->
    <artifactId>test-automation-template</artifactId> <!-- The name of the project -->
    <version>1.0-SNAPSHOT</version> <!-- The current version of the project -->

    <properties>
        <!-- Java version for compiling the project -->
        <maven.compiler.source>17</maven.compiler.source> <!-- Java version for source code -->
        <maven.compiler.target>17</maven.compiler.target> <!-- Java version for compiled classes -->
        <project.build.sourceEncoding>UTF-8
        </project.build.sourceEncoding> <!-- Encoding to handle special characters -->

        <!-- Versions for external dependencies -->
        <cucumber.version>7.20.0</cucumber.version> <!-- Cucumber version -->
        <selenium.version>4.11.0</selenium.version> <!-- Selenium version -->
        <webdriver.version>5.5.3</webdriver.version> <!-- WebDriverManager version -->
        <junit.version>5.11.0</junit.version> <!-- JUnit version -->
    </properties>

    <!-- Project dependencies -->
    <dependencies>
        <!-- JUnit is used as the testing framework -->
        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter-api</artifactId>
            <version>${junit.version}</version> <!-- Use the JUnit version defined in properties -->
            <scope>test</scope> <!-- Indicates this dependency is only needed for tests -->
        </dependency>
        <dependency>
            <groupId>org.junit.platform</groupId>
            <artifactId>junit-platform-suite-api</artifactId>
            <version>${junit.version}</version>
            <scope>test</scope>
        </dependency>

        <!-- Cucumber dependencies for Behavior-Driven Development (BDD) -->
        <dependency>
            <groupId>io.cucumber</groupId>
            <artifactId>cucumber-java</artifactId>
            <version>${cucumber.version}</version> <!-- Cucumber library for writing step definitions -->
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>io.cucumber</groupId>
            <artifactId>cucumber-junit-platform-engine</artifactId>
            <version>${cucumber.version}</version> <!-- Integrates Cucumber with JUnit -->
            <scope>test</scope>
        </dependency>

        <!-- Selenium dependencies for browser automation -->
        <dependency>
            <groupId>org.seleniumhq.selenium</groupId>
            <artifactId>selenium-java</artifactId>
            <version>${selenium.version}</version> <!-- Selenium Java binding -->
        </dependency>

        <!-- WebDriverManager for automatically managing browser drivers -->
        <dependency>
            <groupId>io.github.bonigarcia</groupId>
            <artifactId>webdrivermanager</artifactId>
            <version>${webdriver.version}</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <!-- Maven Compiler Plugin for Java compilation -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version> <!-- Plugin version -->
                <configuration>
                    <release>17</release> <!-- Java version for compiling -->
                </configuration>
            </plugin>

            <!-- Maven Surefire Plugin for executing tests -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>3.0.0-M7</version> <!-- Plugin version -->
                <configuration>
                    <includes>
                        <include>**/*.java</include> <!-- Include all Java files in the test folder -->
                    </includes>
                    <systemPropertyVariables>
                        <!-- Pass configuration to Cucumber -->
                        <cucumber.features>src/test/resources</cucumber.features> <!-- Path to feature files -->
                        <cucumber.glue>your.step.definition.package</cucumber.glue> <!-- Step definitions package -->
                        <cucumber.plugin>pretty, json:target/cucumber.json</cucumber.plugin> <!-- Report plugins -->
                    </systemPropertyVariables>
                </configuration>
            </plugin>

            <!-- Maven Failsafe Plugin for integration tests -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-failsafe-plugin</artifactId>
                <version>3.0.0-M7</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>integration-test</goal> <!-- Runs integration tests -->
                            <goal>verify</goal> <!-- Verifies test results -->
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

Step 05.02 Runner Class Template

The final component of the set-up is the runner class which is in charge to tell junit where the feature files and step definitions are. It is also used to pass customized test execution configurations.

C:\04ForgeGuard\ForgeGuard\src\test\java\ForgeGuard\RunCucumberTest.java

package ForgeGuard;

import org.junit.platform.suite.api.ConfigurationParameter;
import org.junit.platform.suite.api.IncludeEngines;
import org.junit.platform.suite.api.SelectDirectories;
import org.junit.platform.suite.api.Suite;

import static io.cucumber.junit.platform.engine.Constants.*;

@Suite
@IncludeEngines("cucumber") // Use the Cucumber engine
@SelectDirectories("src/test/resources/ForgeGuard") // Path to your feature files
@ConfigurationParameter(key = GLUE_PROPERTY_NAME, value = "ForgeGuard") // Package containing step definitions
@ConfigurationParameter(key = PLUGIN_PROPERTY_NAME, value = "pretty, json:target/cucumber.json") // Plugins
public class RunCucumberTest {
}

Encouragement

Every project milestone brings a sense of achievement, and even challenges contribute to stronger skills and deeper understanding.

Step 06 Basic Selenium Test Setup

Once the project structure is set up, the pom file is correct and the runner class is implemented, it's time to test the set-up to verify everything runs smoothly.

Objective: Write and execute initial tests to verify the setup. Tasks:

• Create a simple Selenium test to open a browser and validate functionality. Inside the java directory, a directory with the project name(not mandatory, it can have any name) should exist. This is the folder where the BasicTest.java will be created to test the setup work as expected.

<your-project-name>/
├── .idea/
├── <your-project-name>/
│   ├── src/
│   │   ├── test/
│   │   │   ├── java/
│   │   │   │   ├── <your-project-name>/
│   │   │   │   │   ├── BasicTest.java

After the file is created paste the code below to test the setup is properly configured.

import io.github.bonigarcia.wdm.WebDriverManager;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.junit.jupiter.api.Test;

public class BasicTest {

    @Test
    public void testGooglePageTitle() {
        // WebDriver setup
        WebDriverManager.chromedriver().setup();
        WebDriver driver = new ChromeDriver();

        // Open Google and print title
        driver.get("https://google.com");
        System.out.println("Page Title: " + driver.getTitle());

        // Quit browser
        driver.quit();
    }
}

To execute the BasicTest.java file the code below should be pasted in a new terminal.

mvn test -Dtest=DatabaseTest

Note: For some reason mvn commands don't work sometimes in pwsh terminals make sure you use bash instead.

Step 07 Basic Cucumber Test Setup

If the test above runs properly it means selenium works properly. Now it's time to test if cucumber works properly too. Add a sample Cucumber feature file and step definitions to validate that Cucumber works properly.

Objective: Write and execute initial tests to verify the setup. Tasks:

• Navigate to resources/.

<your-project-name>/
├── .idea/
├── <your-project-name>/
│   ├── src/
│   │   ├── test/
│   │   │   ├── java/
│   │   │   │   ├── <your-project-name>/
│   │   │   │   │   ├── BasicTest.java
│   │   │   │   │   ├── ForgeGuard.StepDefinitions.java
│   │   │   │   │   └── TestRunner.java
│   │   │   ├── resources/
│   │   │   │   ├── <your-project-name>/
│   │   │   │   │   └── is_it_friday_yet.feature

Add the following scenario

# Feature name
Feature: Is it Friday yet?
# Description
  Everybody wants to know when it's Friday
# Tags for identifying scenarios. Multiple scenarios can exist in a file.
  @WeekendCheck
# Scenario name to be able to identify it.
  Scenario: Sunday isn't Friday
# Steps that will be defined in the "Step Definition" file.
    Given today is Sunday
    When I ask whether it's Friday yet
    Then I should be told "Nope"

Then navigate to

<your-project-name>/
├── .idea/
├── <your-project-name>/
│   ├── src/
│   │   ├── test/
│   │   │   ├── java/
│   │   │   │   ├── <your-project-name>/
│   │   │   │   │   ├── BasicTest.java
│   │   │   │   │   ├── ForgeGuard.StepDefinitions.java
│   │   │   │   │   └── TestRunner.java

The following code adds the logic to test the previously created scenario.

package ForgeGuard;

import io.cucumber.java.en.Given;
import io.cucumber.java.en.When;
import io.cucumber.java.en.Then;
import static org.junit.jupiter.api.Assertions.*;

class ForgeGuard.IsItFriday {
    static String isItFriday(String today) {
        return "Nope";
    }
}

public class ForgeGuard.StepDefinitions {
    private String today;
    private String actualAnswer;

    @Given("today is Sunday")
    public void today_is_Sunday() {
        today = "Sunday";
    }

    @When("I ask whether it's Friday yet")
    public void i_ask_whether_it_s_Friday_yet() {
        actualAnswer = ForgeGuard.IsItFriday.isItFriday(today);
    }

    @Then("I should be told {string}")
    public void i_should_be_told(String expectedAnswer) {
        assertEquals(expectedAnswer, actualAnswer);
    }
}

Step 07.01 Basic Cucumber Test Setup: Execution

To execute the test there are several choices:

• Run scenarios by name:

mvn test -Dcucumber.filter.name="Sunday isn't Friday"

• Run all scenarios in a file:

mvn test -Dcucumber.features=src/test/resources/ForgeGuard/is_it_friday_yet.feature

• Run scenarios by tag:

mvn test -Dcucumber.filter.tags="@WeekendCheck"

• Re-install dependencies and compiling test code without executing tests.

mvn clean install -DskipTests

• Re-install dependencies without compiling and executing test code

mvn clean install -Dmaven.test.skip=true

Congratulations! Set Up Completed

Now, the setup is completed and is time start testing. You're doing a fantastic job! Every new test you write is another step toward mastering automation testing. Keep building momentum—you’ve got this! 😊

Step 08 Understand Automation Logic: Selenium

Before writing automated test a basic understanding of Selenium is needed. Selenium is an open source project dedicated to browser automation with several products under its brand, however for web browser testing purposes the product used is Selenium WebDriver.

Selenium Web driver

• Definition: WebDriver is a high-level Selenium API that provides a programming interface to interact with web
• browsers.
• Role: It defines how commands are sent to the browser and manages the communication between your test scripts and the
• browser-specific driver.

WebDriver Core 06 Components

The WebDriver is composed by 6 core components, and several subcomponents. They are the building blocks Selenium uses to interact with the browser, and therefore they are also the building blocks of the stepdefinitions file needed for automation testing.

01 Drivers

• Options: Configures browser options like headless mode or window size.
• Http Client: Handles HTTP requests between Selenium and the browser driver.
• Service: Manages driver lifecycle (start, stop, port configuration).
• Remote Web Driver: Enables testing on remote browsers or cloud grids.

02 Browsers

• Chrome: Automates Google Chrome browser actions and interactions.
• Firefox: Automates Mozilla Firefox browser actions and interactions.
• Edge: Automates Microsoft Edge browser actions and interactions.

03 Waits

• Implicit: Global wait for element presence across all interactions.
• Explicit: Waits for specific conditions like visibility or click-ability.
• Custom: User-defined waits for unique or complex conditions.

04 Elements

• 4.1 Uploads: Handles file input fields for uploading files.

4.2 Locators (Find elements based on attributes):

• class: Finds elements by class attribute.
• css: Uses CSS selectors for locating elements.
• id: Finds elements by unique id attribute.
• name: Finds elements by name attribute.
• link text: Finds links by exact visible text.
• partial link text: Finds links by partial visible text.
• tag name: Finds elements by HTML tag name.
• xpath: Uses XPath expressions to locate elements.

4.3 Finders: Locate elements on the page using locators.

4.4 Interactions:

• Click: Clicks a web element.
• Send Keys: Inputs text into fields.
• Clear: Clears input fields or text areas.
• Submit: Submits forms programmatically.
• Select: Selects dropdown options.

4.5 Information:

• Is displayed: Checks if an element is visible.
• Is enabled: Checks if an element is interactable.
• Is selected: Checks if an element is selected (e.g., checkbox).
• Tag name: Gets the HTML tag of an element.
• Size and position: Retrieves element size and screen position.
• Get CSS Value: Gets computed CSS property values of elements.
• Text Content: Fetches visible text from elements.
• Fetch Properties/Attributes: Retrieves attributes or DOM properties.

05 Interactions

• Navigation: Performs URL navigation (back, forward, refresh, etc.).
• Alerts: Handles JavaScript alerts and confirmation popups.
• Cookies: Manages cookies for sessions and authentication.
• Frames: Switches to or interacts with iframe content.
• Print Pages: Prints page to PDF or retrieves print content.
• Windows: Manages multiple browser windows or tabs.
• Virtual Authenticator: Tests WebAuthy functionality programmatically.

06 Actions

• Keyboard: Simulates keyboard inputs like typing or key combinations.
• Mouse: Simulates mouse actions like hover, drag, and drop.
• Pen: Simulates pen input for touch devices.

Encouragement

The journey of learning and improvement is always worthwhile, and small steps lead to remarkable outcomes.

Selenium Script: 8 Components

When writing a selenium script for web automation there are always 8 basic components involved. Mastering those guarantees a step-by-step process that can be followed for writing the stepdefinitions file.

1. Start Session: Initialize the WebDriver
2. Take Action: Perform browser-level actions like navigating to a URL
3. Request Information: Retrieve details like page title, URL, or cookies
4. Waiting Strategy: Wait for elements to load or be interactable using explicit waits
5. Find Element: Locate elements on the page with locators like ID, CSS, or XPath
6. Interact: Interact with elements by clicking, typing, or selecting
7. Request Information: Extract details like text or attributes from elements
8. End Session: Close the browser and clean up resources

Step 09 Scripting

Understanding Selenium WebDriver 6 components and Selenium's script 8 components are the first steps to master web-browser automation scripting. The next step is to write the first script. The objective of this project is to create automated test cases using Selenium, Java, and Cucumber to verify the login page's functionality of "https://practice.expandtesting.com/login".

These tests will:

• Test login with valid credentials.
• Test login with invalid credentials.
• Validate error messages for incorrect input.
• Verify successful redirection after a valid login.

Step 09.01 Feature File

After the 6 steps from the set-up are complete to automate the tests above the first step is to write the feature file. This file will describe all the steps to execute the test in Gherkin language which is very similar to plain English.

Feature: Login Functionality
  As a user
  I want to be able to login with valid credentials
  So that I can access the application
@valid-login
  Scenario: Valid Login
  Given I am in the login page
  When I enter the valid credentials "practice" and "SuperSecretPassword!"
  Then I should be redirected to the secure page
  And I should see a welcome message "Secure Area page for Automation Testing Practice"

@invalid-login
  Scenario: Invalid Login
  Given I am in the login page
  When I enter the invalid credentials "2" and "2"
  Then I should see an error message "Your username is invalid!"

Step 09.02 StepDefinitions

The step definition file is the place where the automation instructions are written using Selenium's WebDriver and Scrip components.

package ForgeGuard;

import io.cucumber.java.en.Given;
import io.cucumber.java.en.Then;
import io.cucumber.java.en.When;
import io.github.bonigarcia.wdm.WebDriverManager;
import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.time.Duration;


import static org.junit.jupiter.api.Assertions.assertEquals;
import static org.junit.jupiter.api.Assertions.assertTrue;

public class ValidLogin {  // Declares the main class. This is the file name that encapsulates all data and methods.
    WebDriver driver;      // Declares a WebDriver variable provided by Selenium to control the browser.
    WebDriverWait wait;    // Declares WebDriverWait instance from Selenium to implement explicit waits.

    @Given("I am in the login page")        // Cucumber annotation that links step definition with feature file.
    public void i_am_on_the_login_page() {  // Defines a method that implements the behaviour of the step.
        WebDriverManager.chromedriver().setup(); // Call the WebDriverManager library to set up the Chrome-driver.
        ChromeOptions options = new ChromeOptions(); // Object  of ChromeOptions class that customize driver behaviour.
        options.addArguments("--headless", "--disable-gpu", "--window-size=1920,1080"); // Pass arguments.
        driver = new ChromeDriver(options); // Initializes the driver object as a new class of ChromeDriver.

        driver.get("https://practice.expandtesting.com/login"); // Get method of the WebDriver

        wait = new WebDriverWait(driver, Duration.ofSeconds(10)); // Initializes the wait object.
    }

    @When("I enter the valid credentials {string} and {string}")
    public void i_enter_the_valid_credentials(String username, String password) {
        WebElement usernameField = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//*[@id=\"username\"]")));
        WebElement passwordField = driver.findElement(By.xpath("//*[@id=\"password\"]"));
        WebElement loginButton = driver.findElement(By.xpath("//*[@id=\"login\"]/button"));
            usernameField.sendKeys(username);
            passwordField.sendKeys(password);
            loginButton.click();
    }

    @Then("I should be redirected to the secure page")
    public void i_should_be_redirected_to_the_secure_page(){
        String currentUrl = wait.until(ExpectedConditions.urlContains("secure")) ? driver.getCurrentUrl() :"";
        assertTrue(currentUrl.contains("secure"), "The user is not redirected to the secure page.");

    }

    @Then("I should see a welcome message {string}")
    public void i_should_see_a_welcome_message(String expectedMessage){
        WebElement welcomeMessage = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("/html/body/main/div[4]/div/h1")));
        assertTrue(welcomeMessage.isDisplayed(),"Welcome message is not displayed");
        assertEquals(expectedMessage, welcomeMessage.getText(), "The message does not match");

        driver.quit();
    }

    @When("I enter the invalid credentials {string} and {string}")
    public void i_enter_the_invalid_credentials(String username, String password){
        WebElement usernameField = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//*[@id=\"username\"]")));
        WebElement passwordField = driver.findElement(By.xpath("//*[@id=\"password\"]"));
        WebElement loginButton = driver.findElement(By.xpath("//*[@id=\"login\"]/button"));
        usernameField.sendKeys(username);
        passwordField.sendKeys(password);
        loginButton.click();
    }

    @Then("I should see an error message {string}")
    public void i_should_see_an_error_message(String expectedMessage){
        WebElement errorMessage = wait.until(ExpectedConditions.visibilityOfElementLocated(By.id("flash")));
        assertTrue(errorMessage.isDisplayed(),"Error message is not displayed");
        assertEquals(expectedMessage, errorMessage.getText(),"Text does not match");

        driver.quit();
    }
}

Congratulations - Functionality Test Completed!🚀✨

You're making steady progress toward building a robust test automation framework! Every refinement you make brings you closer to a more polished and professional setup. Stay focused, and don't forget to celebrate your wins—no matter how small! 🚀✨ Keep up the great momentum! This project is a great first step, and every effort is bringing it closer to excellence!🚀 Next step is to add database interactions to functionality tests.

ForgeGuard - Functionality Testing - Database Interactions - Login

Estimated Time: 2 hours
Tech Stack: Selenium - Java - Cucumber
Keywords: Automation - Testing - QA - BDD
Experience Level: Beginner - Advanced

Note: This project is a continuation of the project ForgeGuard - Functionality Testing

Why Database Interactions

When automating tests for modern applications is crucial to interact with a database to extract and validate data following business logic (mostly for fill up forms, and login) since the operations the user will be able to perform in the app will depend mostly on information from the database.

Objective

Create automated test cases using Selenium, Java, and Cucumber that uses a database to interact with an app using business logic. Around ~90% of the actions a user perform on any given applications requires some kind of database interaction.

These tests will:

• Test login with valid credentials.
• Test login with invalid credentials.
• Validate error messages for incorrect input.
• Verify successful redirection after a valid login.

Encouragement 🏆

Progress in automation testing requires persistence, and each effort lays a solid foundation for future success.

Table Of Contents

1. Why Database Interactions
2. Objective
3. Database Testing
4. Database Testing With H2
5. Step 01 Set Up H2 in Your Project
6. Step 02 Write a Test Scenario
7. Step 03 Write The Step Definition File
8. Step 04 Login Test With Database Interaction

Database Testing

Database testing is crucial because it verifies the accuracy, consistency, and integrity of data stored within a database, ensuring the reliability and credibility of an application by identifying issues like missing or duplicate records, incorrect data types, or inconsistent data relationships, ultimately preventing faulty decision-making based on inaccurate data.

Database Testing With H2

H2 Database: It's an in-memory, lightweight, and Java-based database ideal for testing purposes. It simulates a real database environment without needing a full-fledged database installation. Perfect for integration testing where test data is crucial.

Step 01 Set Up H2 in Your Project

First step to set up H2 database is to add the H2 dependency to the pom.xml:

<dependency>
    <groupId>com.h2database</groupId>
    <artifactId>h2</artifactId>
    <version>2.2.220</version>
    <scope>test</scope>
</dependency>

Step 02 Write a Test Scenario

Next step is to write a test scenario to test the database is working correctly.

Feature: H2 Database Testing
  As a developer
  I want to test the H2 database connection
  So that I can verify that the database operations work as expected

@database-validation
  Scenario: Validate H2 database connection and query
    Given a sample H2 database is initialized
    When a user with ID 1 is queried
    Then the user name should be "John Doe"

Step 03 Write The Step Definition File

This file will execute a test to verify the database works properly.

package ForgeGuard;

import io.cucumber.java.en.*;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.Statement;

import static org.junit.jupiter.api.Assertions.assertEquals;

public class DatabaseSteps { // The DatabaseSteps class in the name of the file and the container for everything in it.

    private Connection connection; // Variable instance of SQL connection.
    private Statement statement;   // Variable instance of SQL queries
    private ResultSet resultSet;   // Variable Instance of the SQL query result.

    @Given("a sample H2 database is initialized") // Cucumber annotation that maps with the feature file step.
    public void a_sample_h2_database_is_initialized() throws Exception { // Method to handle connection.
        // Connect to the H2 database
        connection = DriverManager.getConnection("jdbc:h2:mem:testdb", "sa", ""); // Connects to H2.
        statement = connection.createStatement(); // Creates an object to send SQL queries.

        // Create a sample table and insert data
        statement.execute("CREATE TABLE USERS (ID INT PRIMARY KEY, NAME VARCHAR(255));"); // Execute SQL queries.
        statement.execute("INSERT INTO USERS (ID, NAME) VALUES (1, 'John Doe');"); // Executes SQL queries.
    }

    @When("a user with ID {int} is queried")
    public void a_user_with_id_is_queried(Integer id) throws Exception {
        // Query the database
        resultSet = statement.executeQuery("SELECT * FROM USERS WHERE ID=" + id + ";");
        resultSet.next();
    }

    @Then("the user name should be {string}")
    public void the_user_name_should_be(String expectedName) throws Exception {
        // Validate the result
        String actualName = resultSet.getString("NAME");
        assertEquals(expectedName, actualName);

        // Clean up resources
        resultSet.close();
        statement.close();
        connection.close();
    }
}

Step 04 Login Test With Database Interaction

Next step is to perform a login test querying data from a database. Simulating what will happen in a real life situation. This file expands the 000_smoketest_login.feature including database interactions.

package ForgeGuard;

import io.cucumber.java.en.And;
import io.cucumber.java.en.Given;
import io.cucumber.java.en.Then;
import io.cucumber.java.en.When;
import io.github.bonigarcia.wdm.WebDriverManager;
import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.Statement;
import java.time.Duration;


import static org.junit.jupiter.api.Assertions.assertEquals;
import static org.junit.jupiter.api.Assertions.assertTrue;

public class ValidLogin {
    WebDriver driver;
    WebDriverWait wait;
    private String username;
    private String password;

    @Given("I am in the login page")
    public void i_am_on_the_login_page() {
        WebDriverManager.chromedriver().setup();
        ChromeOptions options = new ChromeOptions();
        options.addArguments("--headless", "--disable-gpu", "--window-size=1920,1080");
        driver = new ChromeDriver(options);

        driver.get("https://practice.expandtesting.com/login");

        wait = new WebDriverWait(driver, Duration.ofSeconds(10));
    }

    @When("I enter the valid credentials {string} and {string}")
    public void i_enter_the_valid_credentials(String username, String password) {
        WebElement usernameField = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//*[@id=\"username\"]")));
        WebElement passwordField = driver.findElement(By.xpath("//*[@id=\"password\"]"));
        WebElement loginButton = driver.findElement(By.xpath("//*[@id=\"login\"]/button"));
        usernameField.sendKeys(username);
        passwordField.sendKeys(password);
        loginButton.click();
    }

    @Then("I should be redirected to the secure page")
    public void i_should_be_redirected_to_the_secure_page() {
        String currentUrl = wait.until(ExpectedConditions.urlContains("secure")) ? driver.getCurrentUrl() : "";
        assertTrue(currentUrl.contains("secure"), "The user is not redirected to the secure page.");

    }

    @Then("I should see a welcome message {string}")
    public void i_should_see_a_welcome_message(String expectedMessage) {
        WebElement welcomeMessage = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("/html/body/main/div[4]/div/h1")));
        assertTrue(welcomeMessage.isDisplayed(), "Welcome message is not displayed");
        assertEquals(expectedMessage, welcomeMessage.getText(), "The message does not match");

        driver.quit();
    }

    @When("I enter the invalid credentials {string} and {string}")
    public void i_enter_the_invalid_credentials(String username, String password) {
        WebElement usernameField = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//*[@id=\"username\"]")));
        WebElement passwordField = driver.findElement(By.xpath("//*[@id=\"password\"]"));
        WebElement loginButton = driver.findElement(By.xpath("//*[@id=\"login\"]/button"));
        usernameField.sendKeys(username);
        passwordField.sendKeys(password);
        loginButton.click();
    }

    @Then("I should see an error message {string}")
    public void i_should_see_an_error_message(String expectedMessage) {
        WebElement errorMessage = wait.until(ExpectedConditions.visibilityOfElementLocated(By.id("flash")));
        assertTrue(errorMessage.isDisplayed(), "Error message is not displayed");
        assertEquals(expectedMessage, errorMessage.getText(), "Text does not match");

        driver.quit();
    }

    @When("I enter the special character{string}and{string}")
    public void i_enter_the_special_character(String special_one, String special_two) {
        WebElement usernameField = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//*[@id=\"username\"]")));
        WebElement passwordField = driver.findElement(By.xpath("//*[@id=\"password\"]"));
        WebElement loginButton = driver.findElement(By.xpath("//*[@id=\"login\"]/button"));
        usernameField.sendKeys(special_one);
        passwordField.sendKeys(special_two);
        loginButton.click();
    }

    @Then("I should see an error{string}")
    public void i_should_see_an_error(String expectedMessage) {
        WebElement errorMessage = wait.until(ExpectedConditions.visibilityOfElementLocated(By.id("flash")));
        assertTrue(errorMessage.isDisplayed(), "Error message is not displayed");
        assertEquals(expectedMessage, errorMessage.getText(), "Text does not match");

        driver.quit();
    }

    @When("I query the database for the credentials")
    public void i_query_the_database_for_the_credentials() throws Exception {
        //Step 01 Connection to the database.
        Connection connection = DriverManager.getConnection("jdbc:h2:file:./data/testdb", "sa", "");
        Statement statement = connection.createStatement();
        // Step 02 Create the table if it does not exist.
        statement.execute("CREATE TABLE IF NOT EXISTS USERS (ID INT PRIMARY KEY, NAME VARCHAR(255), PASSWORD VARCHAR(255));");
        // Step 03 Insert data if the table is empty.
        statement.execute("MERGE INTO USERS KEY(ID) VALUES (1, 'practice', 'SuperSecretPassword!');");
        // Step 04 Query the credentials.
        ResultSet resultSet = statement.executeQuery("SELECT NAME, PASSWORD FROM USERS WHERE ID = 1;");
        // Step 05 Move to the first result row.
        resultSet.next();

        // Step 06 Store the credentials in temporary(within the method) variables.
        String username = resultSet.getString("NAME");
        String password = resultSet.getString("PASSWORD");
        // Step 07 Transfer data from local to instance variables so they can be accessed from outside the method.
        this.username = username;
        this.password = password;

    }

    @Then("I should use those credentials to log in")
    public void i_should_use_those_credentials_to_log_in() {
        WebElement usernameField = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//*[@id=\"username\"]")));
        WebElement passwordField = driver.findElement(By.xpath("//*[@id=\"password\"]"));
        WebElement loginButton = driver.findElement(By.xpath("//*[@id=\"login\"]/button"));

        // Step 08 Request the data from the instance variables to log in.
        usernameField.sendKeys(username);
        passwordField.sendKeys(password);
        loginButton.click();

    }

    @And("I should see a message{string}")
    public void i_should_see_a_message(String message) {
        WebElement welcomeMessage = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("/html/body/main/div[4]/div/h1")));
        assertTrue(welcomeMessage.isDisplayed(), "Welcome message is not displayed");
        assertEquals(message, welcomeMessage.getText(), "The message does not match");

        driver.quit();
    }
}

Conclusion🏆

This Database Testing project is a fantastic step forward in combining data management with testing workflows. By integrating H2, Selenium, and Cucumber, it demonstrates how dynamic database connections can enhance testing efficiency and realism. This success lays a strong foundation for tackling more complex scenarios and ensures confidence in your application's functionality. Great work—keep building on this momentum!😊

Functionality Testing - Database Interactions - Form

Estimated Time: 2 hours
Tech Stack: Selenium - Java - Cucumber - H2
Keywords: Automation - Testing - QA - BDD
Experience Level: Beginner - Advanced

Note: This project is a continuation of the project ForgeGuard - Database Testing

Why Form Testing

After logins forms are the most used functionality in the web as they serve to get users information to then be able to apply some business logic.

Objective

Create automated test cases using Selenium, Java, and Cucumber that uses a database to get data to fill up a form. These tests will:

• Test form with valid credentials.
• Test form with invalid credentials.
• Validate error messages for incorrect input.
• Verify successful redirection after form completion.

Encouragement 🏆

“Discovering the unexpected is more important than confirming the known.” – George E. P. Box

Table Of Contents

1. Why Form Testing
2. Objective
3. Step 01 Database Interaction Via Terminal
4. Step 02 Feature File
5. Step 03 Steps Definition File
6. Step 04 Conclusion

Step 01 Database Interaction via terminal

To interact with form during testing it's possible to pass the form data in the step definitions file like in the ForgeGuard - Database Testing example. However, commonly in production logic and data don't mix, mostly for security reason but also practicality if the data is too long.

• Navigate to the H2 jar file: Normally using maven the file will be at:

cd ~/.m2/repository/com/h2database/h2/2.2.220

• Launching the H2 Shell:

java -cp h2-2.2.220.jar org.h2.tools.Shell

• Connect to the Database: To connect to the database some information is required including the url, driver, user, and password.

URL: jdbc:h2:file:C:/03JOB SEARCH/04ForgeGuard/ForgeGuard/data/testdb # Absolute path
USER: sa
PASSWORD:
DRIVER:

• Querying the database: Once on the database's shell it's possible to interact with it trough SQL queries such as:

SHOW TABLES;

• Altering/Modifying tables: Tables can be modified to keep form data as follows:

ALTER TABLE USERS ADD (CONTACT_NAME VARCHAR(255), CONTACT_NUMBER VARCHAR(15), PICKUP_DATE DATE, PAYMENT_METHOD VARCHAR(50));

• Updating rows to fit form data:

UPDATE USERS SET NAME = 'Jane Doe', CONTACT_NUMBER = '012-5678901', PICKUP_DATE = '2025-03-01', PAYMENT_METHOD = 'credit card' WHERE ID = 2;

• Inserting data into the table:

INSERT INTO USERS (ID, NAME, PASSWORD, CONTACT_NUMBER, PICKUP_DATE, PAYMENT_METHOD)
VALUES (2, 'Jane Doe', 'password123', '012-5678901', '2025-03-01', 'cash on delivery');

Step 02 Feature File

Feature: Form
  As a developer
  I want to be able to extract data from the database
  So I can fill up forms with it

  @form-submission
  Scenario: Form Submission
    Given I am in the form page
    When I extract the information from the database
    When I use the information to fill up the form
    Then I should see the message"Thank you for validating your ticket"

Step 03 Steps Definition File

package ForgeGuard;

import io.cucumber.java.en.Given;
import io.cucumber.java.en.Then;
import io.cucumber.java.en.When;
import io.github.bonigarcia.wdm.WebDriverManager;
import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.Select;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.Statement;
import java.time.Duration;

import static org.junit.jupiter.api.Assertions.assertEquals;

public class FormSteps {
    WebDriver driver;
    WebDriverWait wait;
    private String username;
    private String number;
    private String date;
    private String payment;

    @Given("I am in the form page")
    public void i_am_in_the_form_page() {
        WebDriverManager.chromedriver().setup();
        ChromeOptions options = new ChromeOptions();
        options.addArguments("--headless", "--disable-gpu", "--window-size=1920,1080");
        driver = new ChromeDriver(options);

        driver.get("https://practice.expandtesting.com/form-validation");
        wait = new WebDriverWait(driver, Duration.ofSeconds(10));
    }

    @When("I extract the information from the database")
    public void i_extract_the_information_from_the_database() throws Exception {

        try (Connection connection = DriverManager.getConnection("jdbc:h2:file:C:/03JOB SEARCH/04ForgeGuard/ForgeGuard/data/testdb", "sa", "");
             Statement statement = connection.createStatement();
             ResultSet resultSet = statement.executeQuery("SELECT * FROM USERS WHERE ID = 2;")) {
            // Connect to the H2 database

            // Execute query to fetch user data
            if (resultSet.next()) {
                // Store the retrieved data into instance variables
                this.username = resultSet.getString("NAME");
                this.number = resultSet.getString("CONTACT_NUMBER");
                this.date = resultSet.getString("PICKUP_DATE");
                this.payment = resultSet.getString("PAYMENT_METHOD");
            } else {
                throw new Exception("No data found in the USERS table.");
            }
        }
    }

    @When("I use the information to fill up the form")
    public void i_use_the_information_to_fill_up_the_form() {
        // Locate the form fields
        WebElement usernameField = wait.until(ExpectedConditions.visibilityOfElementLocated(By.id("validationCustom01")));
        WebElement numberField = driver.findElement(By.id("validationCustom05"));
        WebElement dateField = driver.findElement(By.name("pickupdate"));
        Select paymentField = new Select(driver.findElement(By.id("validationCustom04")));
        WebElement submitButton = driver.findElement(By.xpath("/html/body/main/div[3]/div/div/div/div/form/div[5]/button"));

        // Fill the form with extracted data
        usernameField.sendKeys(username);
        numberField.sendKeys(number);
        dateField.sendKeys(date);
        paymentField.selectByVisibleText(payment);
        submitButton.click();
    }

    @Then("I should see the message{string}")
    public void i_should_see_the_message(String expectedMessage) {
        // Verify the success message
        WebElement submissionMessage = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("/html/body/main/div[3]/div/div/p")));
        assertEquals(expectedMessage, submissionMessage.getText(), "The message does not match");
        driver.quit();
    }
}

Step 04 Conclusion

The project has been a remarkable journey, showcasing the power of integration between Selenium, Cucumber, and H2 databases to build a comprehensive and efficient test automation framework. The progress made is a clear indicator of how dedication and persistence lead to meaningful achievements—this is only the beginning of a promising path in test automation! Keep up the fantastic work! 🚀

ForgeGuard - API Testing

Estimated Time: 2 hours
Tech Stack: Selenium - Java - Cucumber - RestAssured
Keywords: Automation - Testing - QA - BDD
Experience Level: Beginner - Advanced

Note: This project is a continuation of the project ForgeGuard - Form Testing

Why API Testing

API testing is crucial because it ensures that Application Programming Interfaces (APIs) function correctly, guaranteeing their reliability, performance, security, and overall quality by identifying potential issues early in the development cycle, minimizing the risk of bugs reaching production and allowing for faster fixes, ultimately leading to a better user experience and cost savings.

Objective

To perform manual(Postman) and automated(RestAssured) API tests to the Notes API https://practice.expandtesting.com/notes/api. These test will:

• Create notes with title and content.
• Categorize notes into different categories.
• Update and delete notes.
• Search notes by title or category.

Table Of Contents

1. Why API Testing
2. Objective
3. Best Practice Step 1: Understand the API Requirements
4. Best Practice Step 2: Set Up a Testing Environment
5. Best Practice Step 3: Perform Functional Testing
6. Best Practice Step 4: Perform Authentication & Security Testing
7. Best Practice Step 5: Perform Performance & Load Testing
8. Best Practice Step 6: Run Regression & Integration Tests
9. Best Practice Step 7: Monitor & Log API Calls

Encouragement

You're making great progress—keep up the momentum! 🚀

🛠 Best Practice Step 1: Understand the API Requirements

🔹 Review API Documentation

Identify available endpoints, methods (GET, POST, PUT, DELETE), request parameters, and response structures. Check authorization methods (API key, Bearer token, OAuth, etc.). 🔹 Define the Test Scope

Determine what needs to be tested:

• ✅ Functional Testing (Does it work?)
• ✅ Security Testing (Is it secure?)
• ✅ Performance Testing (Is it fast?)
• ✅ Load Testing (Can it handle traffic?)
• ✅ Integration Testing (Does it work with other systems?)

🔄 Best Practice Step 2: Set Up a Testing Environment

🔹 Choose API Testing Tools

• ✔ Postman – Manual and automated API testing.
• ✔ REST Assured – Automated API testing for Java.
• ✔ Newman – Postman CLI runner for automation.
• ✔ JMeter – Load testing for APIs.
• ✔ Cypress/Playwright – API testing within E2E tests.

🔹 Ensure Test Data Availability

If the API interacts with a database, make sure you have test data set up. Use mock servers (e.g., Postman Mock Server, WireMock) for isolated testing. 🔹 Set Up Authentication & Headers

Store API keys/tokens securely (e.g., environment variables). Example: Use Postman Environments to manage variables like BASE_URL, TOKEN, USER_ID.

🧪 Best Practice Step 3: Perform Functional Testing

🔹 Validate HTTP Methods & Endpoints

Test all supported request methods (GET, POST, PUT, DELETE). Ensure that endpoints return expected responses and status codes:

200 OK → Success
201 Created → Resource Created
400 Bad Request → Invalid Request
401 Unauthorized → Missing Token
403 Forbidden → Insufficient Permissions
404 Not Found → Invalid Endpoint

🔹 Check Response Data Consistency

• Verify correct data types (string, int, boolean).
• Ensure required fields are present.
• Validate date formats (ISO 8601).
• Test empty or missing fields.

🔹 Validate Error Handling

• Send invalid inputs and verify proper error messages.
• Ensure rate limits are enforced.

🔑 Best Practice Step 4: Perform Authentication & Security Testing

🔹 Verify Authentication Mechanisms

• Test login requests and token expiration.
• Try unauthorized requests (no token, wrong token).

🔹 Check for Security Vulnerabilities

• ✔ SQL Injection – Try sending " OR 1=1; -- in input fields.
• ✔ Cross-Site Scripting (XSS) – Test by injecting .
• ✔ Broken Authentication – Try using expired tokens.

🚀 Best Practice Step 5: Perform Performance & Load Testing

🔹 Measure Response Times

Ensure API response time meets SLAs (e.g., < 500ms). Test different payload sizes. 🔹 Simulate High Traffic

Use JMeter or K6 to send concurrent requests. Monitor API failures and slowdowns.

🔗 Best Practice Step 6: Run Regression & Integration Tests

🔹 Automate API Tests

Write automated test scripts using Postman/Newman, REST Assured, or Cypress. Integrate with CI/CD pipelines (GitHub Actions, Jenkins, GitLab CI/CD). 🔹 Check API Dependencies

Ensure API integrates well with databases, other APIs, or frontend applications. Use mock services when dependencies are unavailable.

📊 Best Practice Step 7: Monitor & Log API Calls

🔹 Enable Logging

• Use tools like Grafana + Loki, New Relic, or Elastic Stack (ELK) for monitoring. 🔹 Track API Health
• Set up alerts for API failures (e.g., UptimeRobot, Prometheus).

Manual Testing with Postman

About Postman: Postman is a tool that can be used without much training, both for manual and automation testing of APIs. It's easy to automate API tests and group them as a collection so you can chain the tests.

Step 01 Understand the Notes API requirements

To access the API, first an account and log in using email and password must be created. This will generate an authentication token needed for protected resources. The token must be kept safe for authorization.

Step 02 Set Up a Testing Environment

Postman project structure is composed by Workspaces that contains collections that contains the requests. For the

• Tasks:
• Create a collection:
• Create an Environment: To store variables such as base_url and x-auth-token(header).
• Create a user to interact with the API.

POST https://practice.expandtesting.com/notes/api/users/register

Body parameters(info that goes along with the request).

{
  "user": "practice",
  "email": "practi1@expandtesting.com",
  "password": "SuperSecurePassword123!"
}

Best Practice Step 3: Perform Functional Testing

After setting environment it's time to test the functionalities.

• Health Check

GET
/health-check
Check the health of the API Notes service

• Get Profile

GET
/users/profile
Retrieve user profile information

Automating API Testing with Rest Assured

"Rest Assured" is an open-source Java library primarily used for testing REST APIs. It is specifically designed for testing REST APIs, which are a common architecture for web services. it integrates seamlessly with Java-based testing frameworks like JUnit and TestNG.

Step 01 RestAssured Set Up

To use RestAssured the following dependencies must be added to the pom.xml file.

<dependencies>
    <!-- RestAssured for API Testing -->
    <dependency>
        <groupId>io.rest-assured</groupId>
        <artifactId>rest-assured</artifactId>
        <version>5.3.0</version>
        <scope>test</scope>
    </dependency>

    <!-- JSON Processing -->
    <dependency>
        <groupId>com.fasterxml.jackson.core</groupId>
        <artifactId>jackson-databind</artifactId>
        <version>2.15.0</version>
    </dependency>

    <!-- JUnit for Assertions -->
    <dependency>
        <groupId>org.junit.jupiter</groupId>
        <artifactId>junit-jupiter-api</artifactId>
        <version>5.9.2</version>
        <scope>test</scope>
    </dependency>

    <!-- JUnit Engine -->
    <dependency>
        <groupId>org.junit.jupiter</groupId>
        <artifactId>junit-jupiter-engine</artifactId>
        <version>5.9.2</version>
        <scope>test</scope>
    </dependency>
</dependencies>

After adding the dependencies to the pom.xml a clean install must be performed so maven could download the new dependencies.

mvn clean install -DskipTests # -DskipTest save resources by avoiding test from executing.

Step 02 API feature file

The process for testing API using BDD with cucumber doesn't change. After dependencies are added to the pom.xml file a feature file must be created with the test scenarios.

Feature: API Tests
  As a tester I want to test the Notes API
  Using the RestAssured Library to make sure I can automate
  this process in the future.

  @api-check
  Scenario: Verify API is running
    When I send a health check request
    Then the response status should be 200

  @api-login
  Scenario: Login
    When I send a login request
    Then the response status must be 200

Step 03 Steps Definitions

After the feature file it's time to develop the step definition file where the actual test logic will live.

package ForgeGuard;

import io.cucumber.java.en.When;
import io.cucumber.java.en.Then;
import io.restassured.http.ContentType;
import io.restassured.response.Response;


import static io.restassured.RestAssured.given;
import static org.junit.jupiter.api.Assertions.assertEquals;

public class ApiStepDefinitions {
    private Response response; // Instance variable of Response type (RestAssured class containing reponse methods)

    @When("I send a health check request")
    public void i_send_a_health_check_request() {
        response = given() // Method chaining. Each method response depends on the one before.
                .baseUri("https://practice.expandtesting.com/notes/api")
                .when()
                .get("/health-check");
    }

    @Then("the response status should be {int}")
    public void the_response_status_should_be(int expectedStatus) {
        System.out.println("Actual Response Status: " + response.getStatusCode());
        System.out.println("Response Body: " + response.getBody().asString());
        assertEquals(expectedStatus, response.getStatusCode(), "API response status mismatch");
    }

    @When("I send a login request")
    public void i_send_a_login_request() {
        response = given()
                .baseUri("https://practice.expandtesting.com/notes/api")
                .contentType(ContentType.JSON)
                .body("{ \"email\": \"practi1@expandtesting.com\", \"password\": \"SuperSecurePassword123!\" }")
                .when()
                .post("/users/login");
    }

    @Then("the response status must be {int}")
    public void the_response_status_must_be(int expectedStatus) {
        System.out.println("Actual Response Status: " + response.getStatusCode());
        System.out.println("Response Body: " + response.getBody().asString());
        assertEquals(expectedStatus, response.getStatusCode(), "API response status mismatch");
    }

    @When("I request user info")
    public void i_request_user_info() {
        response = given()
                .baseUri("https://practice.expandtesting.com/notes/api")
                .contentType(ContentType.JSON) //Authorization info must be looked for in the API docs.
                .header("x-auth-token", "9f1272d3b3e146089d475a1ee024dc95a6451739c975432ea41d0e2ed76c77a6")
                .body("{ \"email\": \"practi1@expandtesting.com\", \"password\": \"SuperSecurePassword123!\" }")
                .when()
                .get("/users/profile");
    }

    @Then("the response must be {int}")
    public void the_response_must_be(int expectedStatus) {
        System.out.println("Response Status: " + response.getStatusCode());
        System.out.println("Response body: " + response.getBody().asString());
        assertEquals(expectedStatus, response.getStatusCode(), "There is a status mismatch");
    }
}

Conclusion

🎉 Congratulations on finishing the testing project! That’s a huge achievement, be proud of the dedication and effort you put into it. 🚀 The API testing project has successfully validated endpoints, ensured data integrity, and strengthened automation workflows, marking a solid foundation for scalable and reliable API quality assurance. 🚀

POO with Java

1 hour

POO (Object-oriented programming) allows developers to model software in a very similar fashion to the way we think. In terms of Classes( a category of something), objects (an element inside that category), attributes ( a characteristic of the element), and methods(something the element does).

Class:

public class ClassName {
  // Class body containing attributes and methods
}

public: This is an access modifier, in this case, making the class accessible from anywhere in the program. ClassName: This is the name you choose for your class, following Java naming conventions (starts with an uppercase letter). // Class body: This is where you define the attributes and methods of the class.

Object:

ClassName objectName = new ClassName();

1. ClassName: Replace this with the actual name of your class.
2. objectName: This is the name you choose for your object (reference variable).
3. new ClassName(): This creates a new instance (object) of the ClassName class using the new keyword and the class constructor (which will be discussed later).

Attribute:

private dataType attributeName;

1. private: This is an access modifier, in this case, restricting access to the attribute within the class. Other access modifiers like public and protected are also available.
2. dataType: This specifies the data type of the attribute (e.g., int, String, double).
3. attributeName: This is your name for your attribute.

Method:

public void methodName(dataType parameter) {
  // Method body containing statements
}

1. public: Similar to the class, this makes the method accessible from anywhere. Other access modifiers exist as well.
2. void: This specifies the method's return type. void means it doesn't return any value. Methods can also return other data types.
3. methodName: This is the name you choose for your method.
4. dataType parameter: This defines an optional parameter the method can receive. Methods can have multiple parameters with different data types.
5. // Method body: This is where you write the code the method executes when called.

Example:

Let's model a new Tesla Model S car with a turn-on engine.

public class Car {  // declare class name Car
  private String model;  // with a model Attribute

  public void startEngine() {  // And a Start Engine Method
    System.out.println("Engine started!");
  }
}

public class Main {  // Defines the entry point for the program. The execution starts.
  public static void main(String[] args) {  //
    Car myCar = new Car();  // Create object
    myCar.model = "Tesla Model S";  // Set attribute value
    myCar.startEngine();  // Call method
  }
}

Static Methods

Static methods in Java are a special type of method that belongs to the class itself, rather than to an object of the class. This is useful when you want to call a method straight from the class without having to instantiate ( create) an object to do that. While static methods offer convenience, they can also lead to tight coupling between classes if overused. Favor non-static methods when dealing with object-specific data or behavior.

public class MathUtils {

  public static int add(int a, int b) { // declare static method add
    return a + b;
  }

  public static double calculateArea(double radius) { //declare static method calculateArea
    return Math.PI * radius * radius;  // Accessing a static member of Math class
  }

  public static final double PI = 3.14159;  // Static final variable (constant)
}

public class Main {
  public static void main(String[] args) {
    int sum = MathUtils.add(5, 3);  // Calling static methods without object
    System.out.println("Sum: " + sum);

    double circleArea = MathUtils.calculateArea(10.0);
    System.out.println("Circle Area: " + circleArea);
  }
}

Constructor Methods

The primary purpose of constructors is to initialize the object's attributes with starting values. Classes and objects start with some default values (0 for numbers, false for boolean, and null for objects). If you don't want the class or object initialized like this, you use a constructor.

public class Car {
  private String model;
  private int year;

  // Default constructor (no-arg)
  public Car() {
    // Assigning default values (optional)
    this.model = "Unknown";
    this.year = 2000;
  }

  // Parameterized constructor
  public Car(String model, int year) {
    this.model = model;
    this.year = year;
  }
}

public class Main {
  public static void main(String[] args) {
    // Using default constructor
    Car car1 = new Car();
    System.out.println("Car 1: Model - " + car1.model + ", Year - " + car1.year);

    // Using parameterized constructor
    Car car2 = new Car("Tesla Model S", 2023);
    System.out.println("Car 2: Model - " + car2.model + ", Year - " + car2.year);
  }
}

Overloading Methods

Sometimes you need a method to behave slightly differently according to the number and data types of parameters. By overloading methods, you can provide methods with the same name but specific functionalities based on the arguments provided. This makes code easier to understand and reduces the need for multiple methods with slightly different purposes.

public class Calculator {

  // Add two integers
  public int add(int a, int b) {
    return a + b;
  }

  // Add two doubles
  public double add(double a, double b) {
    return a + b;
  }

  // Add three integers (optional)
  public int add(int a, int b, int c) {
    return a + b + c;
  }
}

public class Main {
  public static void main(String[] args) {
    Calculator calc = new Calculator();
    int sumInt = calc.add(5, 3); // Calls the first add method (int, int)
    double sumDouble = calc.add(2.5, 1.7); // Calls the second add method (double, double)
    System.out.println("Integer sum: " + sumInt);
    System.out.println("Double sum: "  + sumDouble);
  }
}

Overriding Methods

Subclasses can redefine inherited methods from their parent classes. By overriding methods, you can create more specialized classes that inherit core functionality from parent classes but customize specific behaviors.

public class Animal {
  public void makeSound() {
    System.out.println("Generic animal sound");
  }
}

public class Dog extends Animal {
  @Override
  public void makeSound() {
    System.out.println("Woof!");
  }
}

public class Cat extends Animal {
  @Override
  public void makeSound() {
    System.out.println("Meow!");
  }
}

public class Main {
  public static void main(String[] args) {
    Animal animal1 = new Animal();
    animal1.makeSound(); // Generic sound

    Animal animal2 = new Dog();  // Upcasting (treated as Animal at compile time)
    animal2.makeSound(); // Overridden sound (Woof!) due to polymorphism at runtime

    Cat cat = new Cat();
    cat.makeSound(); // Meow!
  }
}

Decision Structures

Allow your Java programs to make choices and execute different code blocks based on certain conditions.

If Statement

int age = 20;
if (age >= 18) {
  System.out.println("You are eligible to vote.");
}

If Else

int number = 10;
if (number > 0) {
  System.out.println("The number is positive.");
} else {
  System.out.println("The number is non-positive.");
}

If Else If Statement

char grade = 'A';
if (grade == 'A') {
  System.out.println("Excellent!");
} else if (grade == 'B') {
  System.out.println("Well done!");
} else {
  System.out.println("Keep practicing!");
}

Switch Statement

1. Used for multi-way branching based on the value of an expression.
2. Each case label checks for a specific value of the expression.
3. An optional break statement prevents fall-through to the next case.
4. A default case can handle situations where none of the other cases match.

String day = "Monday";
switch (day) {
  case "Monday":
  case "Tuesday":
  case "Wednesday":
  case "Thursday":
  case "Friday":
    System.out.println("It's a weekday!");
    break;
  case "Saturday":
  case "Sunday":
    System.out.println("It's a weekend!");
    break;
}

Conclussion

Learning OOP with Java equips you with a powerful and adaptable approach to software development, preparing you for success in a wide range of programming endeavors.

Next

We will discuss more advanced topics such as operators, data types, and repetition structures.

POO with Java II

1 hour

Operators

Operators are special symbols that perform specific operations on values (operands) and produce results. They are the building blocks of expressions and statements in your Java code.

Arithmetic

public class AreaCalculator {

  public static void main(String[] args) {
    // Declare variables to store length and width
    int length = 10;
    int width = 5;

    // Calculate area using arithmetic operator
    int area = length * width;

    // Print the calculated area
    System.out.println("The area of the rectangle is: " + area);
  }
}

Relational

public class RelationalOperatorExample {

  public static void main(String[] args) {
    int age = 25;
    boolean isAdult = age >= 18; // Checking if age is greater than or equal to 18

    if (isAdult) {
      System.out.println("You are an adult.");
    } else {
      System.out.println("You are not an adult.");
    }
  }
}

Compound Attribution

int count = 10;

// Increment count by 1 (same as count = count + 1)
count += 1;

// Decrement count by 2 (same as count = count - 2)
count -= 2;

// Multiply count by 5 (same as count = count * 5)
count *= 5;

Increment and Decrement

public class IncrementDecrementExample {

  public static void main(String[] args) {
    int count = 5;

    // Pre-increment: increment count by 1 and then assign the new value to result
    int result = ++count;  // result becomes 6, count becomes 6

    System.out.println("After pre-increment, count = " + count);  // Output: After pre-increment, count = 6

    int anotherResult = count--;  // anotherResult gets the current value of count (6), then count is decremented to 5

    System.out.println("After post-decrement, anotherResult = " + anotherResult);  // Output: After post-decrement, anotherResult = 6
    System.out.println("After post-decrement, count = " + count);  // Output: After post-decrement, count = 5

  }
}

Logical

public class AgeChecker {

  public static void main(String[] args) {
    int age = 25;
    boolean isAdult = age >= 18 && age < 65; // Combining conditions with AND

    if (isAdult) {
      System.out.println("You are an adult.");
    } else {
      System.out.println("You are not an adult.");
    }
  }
}

Data Types

Here are the most used data types.

Primitive

public class AreaCalculator {

  public static void main(String[] args) {
    // Declare variables with appropriate data types
    int length = 10; // int for whole number (width)
    double width = 5.2;  // double for decimal number (height)
    double area;  // double to store the calculated area (decimal)

    // Calculate the area
    area = length * width;

    // Print the result with a descriptive message
    System.out.println("The area of the rectangle is: " + area);
  }
}

Non-Primitive

public interface Drawable {
  // Declare an abstract method without implementation
  void draw();
}

public class Main {

  public static void main(String[] args) {
    // Create an object of a class implementing the interface
    Drawable drawable = new Square();

    // Call the draw method through the interface reference
    drawable.draw();
  }
}

Repetition Structures/ Loops

Allow you to execute a block of code multiple times based on a certain condition

While loop

This is the most basic loop construct. It repeatedly executes a code block if a specified condition is evaluated as true.

while (condition) {
  // code to be executed
}

Do-while loop

Similar to the while loop, it guarantees that the code block is executed at least once, even if the condition is initially false.

do {
  // code to be executed
} while (condition);

For loop

This loop combines initialization, condition checking, and increment/decrement in a concise syntax. It's often preferred for iterating a fixed number of times

for (initialization; condition; increment/decrement) {
  // code to be executed
}

Package Structure

Packages provide a logical way to group related classes, while directories on your disk reflect this structure.

com
  - yourcompany.ecommerce
    - model
      - Product.java
      - Order.java
      - Customer.java
    - service
      - ProductService.java
      - OrderService.java
      - CustomerService.java
    - controller
      - ProductController.java
      - OrderController.java
      - CustomerController.java

Directory Structure

Map directly to the package structure on disk. A package named com.example.myapp would have a corresponding directory structure like com/example/myapp. Each directory can contain Java source files (.java) and potentially subdirectories for sub-packages.

src
  - com
    - yourcompany
      - ecommerce
        - model
          - Product.java
          - Order.java
          - Customer.java
        - service
          - ProductService.java
          - OrderService.java
          - CustomerService.java
        - controller
          - ProductController.java
          - OrderController.java
          - CustomerController.java

Acces Modifiers

Keywords that define the accessibility of classes, methods, variables, and constructors within a program.

Code Encapsulation

Code encapsulation is a fundamental principle in object-oriented programming (OOP) that focuses on bundling data (attributes) and methods (functions) that operate on that data together within a class. It sets private methods and attributes that will be accessed only within a class. This is useful when you don't want other objects from outside the class to access the class data like a bank account. Please take a look at the example below.

public class Current Account {
  private double balance; // Private attribute to store balance

  public void deposit (double amount) { // Deposits a given amount into the account balance
    balance += amount;
  }

  public double getBalance () { // Retrieves balance from Current Account
    return saldo;
  }
}

Inheritance

Allows you to create sub-classes that inherit attributes and methods from the superclasses.

public class Account { // Superclass - defines generic account properties

  private int accountNumber; // Account number

  public void withdraw (double amount) {
    // Implement logic to withdraw from the account
  }
}

public class Current Account extends Account { // Subclass inherits from Account by "extending" it.

  private double balance; // Specific to current accounts

  public void deposit (double amount) {
    // Implement logic to deposit into current account (can leverage withdraw from account)
  }

  @Override // Indicates method overrides the one in the superclass
  public double getBalance () {
    return balance;
  }
}

Polyformism

Allows objects to get different forms. We have already seen this concept in action in the overriding methods section. Here's a refresher.

class Animal {
  public void makeSound() {
    System.out.println("Generic animal sound");
  }
}

class Dog extends Animal {
  @Override // This annotation indicates method overriding
  public void makeSound() {
    System.out.println("Woof!");
  }
}

class Cat extends Animal {
  @Override
  public void makeSound() {
    System.out.println("Meow!");
  }
}

public class Main {
  public static void main(String[] args) {
    Animal animal1 = new Dog();  // Upcasting (assigning subclass to superclass)
    Animal animal2 = new Cat();

    animal1.makeSound(); // Output: Woof! (calls Dog's makeSound)
    animal2.makeSound(); // Output: Meow! (calls Cat's makeSound)
  }
}

Conclusion

Operators are the essential tools that let you perform operations on data in your Java programs. Without them, you wouldn't be able to do basic things like calculations (addition, subtraction, etc.) or comparisons.

Next

We will learn about abstract classes, interface definitions, and graphic interfaces.

POO III

2 hours

Pass Arguments Via Command Line

In Java, you can pass and access arguments passed via the command line through the String[] args parameter in the main method of your program.

public class ArgumentExample {

  public static void main(String[] args) {
    // Access command-line arguments here
    System.out.println("Number of arguments: " + args.length);
    for (int i = 0; i < args.length; i++) {
      System.out.println("Argument " + i + ": " + args[i]);
    }
  }
}

Running the Programm via CLI

java ArgumentExample This is a string argument! Another argument

Output

Number of arguments: 3
Argument 0: This
Argument 1: is
Argument 2: a string argument! Another argument

Java directories structure

project_name/
  README.md         # Project description and instructions
  LICENSE           # License file
  src/              # Source code directory
    main/
      java/          # Java source code goes here, organized by package
        com/
          example/
            ... your project's java classes ...
      resources/     # Resource files (images, configuration files, etc.)
  test/              # Unit test source code (if applicable)
    java/            # Similar structure for test code packages
  pom.xml            # Project configuration file (for Maven projects)
  build.gradle       # Project configuration file (for Gradle projects)

Processing User Input with Scanner

The Scanner class in Java provides a convenient way to read user input from the console. Here's a practical example that demonstrates using the Scanner class to calculate the area of a rectangle based on user-provided width and height.

import java.util.Scanner;

public class RectangleArea {

  public static void main(String[] args) {
    Scanner scanner = new Scanner(System.in);

    System.out.print("Enter the width of the rectangle: ");
    double width = scanner.nextDouble(); // Read width as a double

    System.out.print("Enter the height of the rectangle: ");
    double height = scanner.nextDouble(); // Read height as a double

    // Calculate and display the area
    double area = width * height;
    System.out.println("The area of the rectangle is: " + area);

    scanner.close(); // Close the scanner (optional but good practice)
  }
}

Exeption Handling

Exception handling in Java is a powerful mechanism for managing errors that occur during program execution.

public class ExceptionExample {

  public static void main(String[] args) {
    int[] numbers = {1, 2, 3};

    try {
      System.out.println(numbers[10]); // This will cause an IndexOutOfBoundsException
    } catch (IndexOutOfBoundsException e) {
      System.out.println("Array index out of bounds: " + e.getMessage());
    } finally {
      System.out.println("This code will always execute.");
    }
  }
}

Assertions

An assertion is a statement you believe true during program execution. If the assertion evaluates to false, the program throws an AssertionError.

Syntax Example:

int age = 20;
assert age >= 18 : "Person must be an adult";

Example:

public class Factorial {

  public static long calculateFactorial(int n) {
    // Assertion for non-negative input
    assert n >= 0 : "Factorial is only defined for non-negative numbers";

    long result = 1;
    for (int i = 2; i <= n; i++) {
      result *= i;
    }
    return result;
  }

  public static void main(String[] args) {
    // Valid input
    long result = calculateFactorial(5);
    System.out.println("5! = " + result); // Output: 5! = 120

    // Invalid input (negative number) - throws AssertionError
    try {
      calculateFactorial(-2);
    } catch (AssertionError e) {
      System.out.println(e.getMessage()); // Output: Factorial is only defined for non-negative numbers
    }
  }
}

Abstract classes

Abstract classes cannot be instantiated directly. They serve as a base class to define a common structure and behavior for subclasses.

public abstract class Shape {
  public abstract double calculateArea(); // Abstract method
  public void printInfo() {
    System.out.println("This is a shape.");
  } // Concrete method with implementation
}

public class Circle extends Shape {
  private double radius;

  public Circle(double radius) {
    this.radius = radius;
  }

  @Override
  public double calculateArea() {
    return Math.PI * radius * radius;
  }
}

Javadoc

Javadoc generates HTML documentation. These pages explain the classes, methods, and fields in your code.

/**
 * This class represents a simple calculator.
 *
 * @author Your Name Here
 */
public class Calculator {

  /**
   * Adds two numbers together.
   *
   * @param num1 the first number
   * @param num2 the second number
   * @return the sum of num1 and num2
   */
  public int add(int num1, int num2) {
    return num1 + num2;
  }
}

For Each Loop

A simpler loop syntax compared to traditional for loops.

for (dataType element : array/collection) {
  // Code to be executed for each element
}

For Each vs For Loop

// For each loop
int[] numbers = {1, 2, 3, 4, 5};

for (int number : numbers) {
  System.out.println(number);
}

For Loop

int[] numbers = {1,2,3,4,5};
for (int i = 0; i < numbers.length; i++) {
  System.out.println(numbers[i]);
}

Enum

An enum in Java is a special data type that allows you to define a set of named constants.

They are commonly used to represent fixed values, like days of the week (MONDAY, TUESDAY, WEDNESDAY) or compass directions (NORTH, SOUTH, EAST, WEST).

public enum Day {
  MONDAY, TUESDAY, WEDNESDAY, THURSDAY, FRIDAY, SATURDAY, SUNDAY
}

Day today = Day.FRIDAY;

if (today == Day.WEEKEND) {
  System.out.println("Time to relax!");
}

Comparable vs Runnable vs Serializable Interfaces

Comparable

Defines object ordering for sorting and comparisons.

public class Student implements Comparable<Student> {
  int id;
  String name;
  int age;

  // Constructor and other fields...

  @Override
  public int compareTo(Student other) {
    return this.age - other.age; // Sort by age in ascending order
  }
}

In this example, the compareTo method compares the age of the current object (this) with another Student object (other). It returns a negative integer if the current object is younger, zero if they have the same age, and a positive integer if the current object is older.

Runnable

Enables multithreading for concurrent task execution.

public class DownloadTask implements Runnable {
  String url;
  String filename;

  public DownloadTask(String url, String filename) {
    this.url = url;
    this.filename = filename;
  }

  @Override
  public void run() {
    // Download logic using URL and filename
    System.out.println("Downloaded: " + filename);
  }
}

This DownloadTask implements Runnable and defines the run method. This method contains the code to download the file from the specified URL and save it with the given filename.

Serializable

Allows object persistence for data storage and sharing especially via network.

public class Person implements Serializable {
  private String name;
  private int age;

  // Getters and setters omitted for brevity
}

With this implementation, you can create Person objects and serialize them to files or transmit them over networks using streams.

Next

We will discuss vectors, arrays and strings, relational and non-relational databases with Java and Threads.

System Design

2 hours

System design is the blueprint for a software system. It's about defining the architecture, components, modules, interfaces, and data flow to achieve specific goals.

Single Server Set Up

A single server setup is a configuration where all system components, such as the web server, database, application server, and file storage, reside on a single physical or virtual machine.

1. The user accesses the website through a domain name.
2. The IP address is returned to the browser
3. Hypertext transfer protocol requests are sent to the web server.
4. The web server returns the HTML to the browser for rendering.

The script below illustrates an Apache web server deployment.

#!/bin/bash
----------------------------------------------------------------------------------
echo "Updating and installing apache2 and unzip..."
apt-get update
apt-get upgrade -y
apt-get install apache2 -y
apt-get install unzip -y
----------------------------------------------------------------------------------
echo "Getting the website from a remote repo..."
cd /tmp
wget https://github.com/denilsonbonatti/linux-site-dio/archive/refs/heads/main.zip
----------------------------------------------------------------------------------
echo "Unziping the file and pasting into the Apache directory..."
unzip main.zip
cd linux-site-dio-main
cp -R * /var/www/html/
----------------------------------------------------------------------------------

Database

With the growth of the user base, one server is not enough, and we need multiple servers: one for web/mobile traffic, and the other for the database. Separating web/mobile traffic (web tier) and database (data tier) servers allows them to be scaled independently.

Here's a MySQL database containerized deployment using Kubernetes.

# Mysql deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mysql
spec:
  selector:   # Select pods with the label "mysql"
    matchLabels:
      app: mysql
  template: # a blueprint for creating pods
    metadata: # Data about the data
      labels:  # Identify pods
        app: mysql
    spec:
      containers:
      - image: alemorales9011935/projeto-database:1.0 # Docker image used for the deployment
        args:
        - "--ignore-db-dir=lost+found"  # Ignores previous deployments
        imagePullPolicy: Always # Ensure the image is pulled even if exists locally
        name: mysql
        ports:
        - containerPort: 3306
          name: mysql

        volumeMounts:
        - name: mysql-dados
          mountPath: /var/lib/mysql/ # where the containers will be storaged
      volumes:
      - name: mysql-dados
        persistentVolumeClaim:
          claimName: mysql-dados

Load Balancer

A load balancer evenly distributes incoming traffic among web servers that are defined in a load-balanced set. Users connect directly to the load balancer's public IP.

With this setup, web servers are no longer directly unreachable by clients.

For better security, private IPs are used for communication between servers. A private IP is an IP address reachable only between servers in the same network; however, it is unreachable over the Internet.

The configuration below defines a LoadBalancer service for a PHP application using Kubernetes.

apiVersion: v1
kind: Service # Defines the type of Kubernetes object
metadata:
  name: php
spec:
  selector: # This service will find and route traffic to pods that have the label app: php.
    app: php  # Select pods with the label "app: php"
  ports:
  - port: 80 # The port users will access from outside the cluster
    targetPort: 80 # The port php application listens
  type: LoadBalancer # Type of Service

Database Replication

Database replication can be used in many database management systems, usually with a master/slave relationship between the original (master) and the copies (slaves). This architecture allows for failover and redundancy.

Here's a Data replication Deployment with docker-compose.

version: '3.7'

services:
  mysql-master:
    image: mysql:latest
    container_name: mysql-master
    environment:
      MYSQL_ROOT_PASSWORD: your_root_password
      MYSQL_DATABASE: your_database
      MYSQL_USER: your_user
      MYSQL_PASSWORD: your_password
      MYSQL_REPLICATION_MODE: master
      MYSQL_REPLICATION_USER: repl_user
      MYSQL_REPLICATION_PASSWORD: repl_password
    ports:
      - "3306:3306"
    volumes:
      - mysql-data:/var/lib/mysql

  mysql-slave:
    image: mysql:latest
    container_name: mysql-slave
    environment:
      MYSQL_ROOT_PASSWORD: your_root_password
      MYSQL_DATABASE: your_database
      MYSQL_USER: your_user
      MYSQL_PASSWORD: your_password
      MYSQL_REPLICATION_MODE: slave
      MYSQL_REPLICATION_USER: repl_user
      MYSQL_REPLICATION_PASSWORD: repl_password
      MYSQL_MASTER_HOST: mysql-master
      MYSQL_MASTER_PORT: 3306
    ports:
      - "3307:3306"
    depends_on:
      - mysql-master
    volumes:
      - mysql-data:/var/lib/mysql

volumes:
  mysql-data:

Cache

A cache is a temporary storage area that stores the result of expensive responses or frequently accessed data in memory so that subsequent requests are served more quickly.

Common Use Cases

1. Caching: Improve application performance by storing frequently accessed data in memory.
2. Session management: Store user session data for faster access.
3. Messaging: Real-time communication between applications.

Caching with Redis: Redis stands for Remote DIctionary Server. It's an open-source, in-memory data structure store that's primarily used as a cache or quick-response database. Here's a simple Redis deployment using docker-compose.

version: '3.7'

services:
  redis:
    image: redis:latest
    container_name: redis
    ports:
      - "6379:6379"

CDN (Content Delivery Network)

A CDN is a network of geographically dispersed servers used to deliver static content. CDN servers cache static content like images, videos, CSS, and JavaScript files.

1. User A tries to get image.png by using an image URL. The CDN provider provides the URL’s domain.
2. If the CDN server does not have image.png in the cache, the CDN server requests the file from the origin, which can be a web server or online storage like Amazon S3.
3. The origin returns image.png to the CDN server, which includes an optional HTTP header Time-to-Live (TTL) which describes how long the image is cached.
4. The CDN caches the image and returns it to User A. The image remains cached in the CDN until the TTL expires.
5. User B sends a request to get the same image.
6. The image is returned from the cache as long as the TTL has not expired.

Here's a basic implementation of a CDN using Nginx:

http {
    proxy_cache_path /var/cache/nginx/proxy_cache levels=1 keys_zone=my_cache:10m max_size=10g inactive=60m use_temp_path=off;

    server {
        listen 80;
        server_name cdn.example.com;

        location /images/ {
            proxy_pass http://origin_server;
            proxy_cache my_cache;
            proxy_cache_valid 200 1h;
            proxy_cache_use_stale error timeout invalid_header;
        }
    }
}

1. proxy_cache_path: Defines the cache directory, size, and other parameters.
2. server block: Configures the CDN server listening on port 80.
3. location blocks: Define specific paths for different content types.
4. proxy_pass: Specifies the origin server where the content resides.
5. proxy_cache: Enables caching for the specified location.
6. proxy_cache_valid: Sets the cache expiration time for successful responses.
7. proxy_cache_use_stale: Defines behavior when the cache is stale.

Stateless vs Statesfull

A stateful server remembers client data (state) from one request to the next. A stateless server keeps no state information.

We move the session data out of the web tier and store them in the persistent data store. The shared data store could be a relational database, Memcached/Redis, NoSQL, etc. The NoSQL data store was chosen because it is easy to scale.

Autoscaling means adding or removing web servers automatically based on the traffic load. After the state data is removed from web servers, auto-scaling of the web tier is easily achieved by adding or removing servers based on traffic load.

Data Centers

To improve availability and provide a better user experience across wider geographical areas, supporting multiple data centers is crucial. In normal operation, users are geoDNS-routed, also known as geo-routed, to the closest data center, with split traffic of x% in US-East and (100 – x)% in US-West. geoDNS is a DNS service that allows domain names to be resolved to IP addresses based on the location of a user.

Message Queue

A message queue is a durable component, stored in memory, that supports asynchronous communication. It serves as a buffer and distributes asynchronous requests.

Input services, called producers/publishers, create messages and publish them to a message queue. Other services or servers, called consumers/subscribers, connect to the queue and perform actions defined by the messages.

Common Use Cases:

1. Order Processing: Handling order placement, inventory updates, shipping notifications, etc.
2. Data Processing: Batching and processing large datasets.
3. Microservices Architecture: Enabling communication between services.
4. Event-Driven Architectures: Processing events and triggering actions.

Monitoring

1. Logging: Monitoring error logs is important because it helps to identify errors and problems in the system.
2. Metrics: Collecting different types of metrics helps us to gain business insights and understand the health status of the system.
3. Automation: When a system gets big and complex, we need to build or leverage automation tools to improve productivity.

Vertical vs Horizontal Scaling

Vertical scaling: Switching for a more capable server(scaling up). Simple-"expensive" Horizontal Scaling: Adding more servers(sharding). Complex-"cheaper"

Conclussion

System design is the blueprint for a software system, outlining its components, architecture, and how they interact. It's the foundation upon which software development and DevOps processes are built.

ForgeAlgo - DSA

Estimated Time: 10 hours
Tech Stack: Java Keywords: Data Structures - Algorithms
Experience Level: Beginner-Advanced

Table of Contents:

1. Step 1: Learn (Study Smart Using Pareto's Law)
2. Step 2: Build (Define an MVS - Minimum Viable Solution)
3. Step 3: Measure (Test Mastery & Adapt to Variations)
4. Efficiency Strategies with Pareto's Law:

🚀 Lean Engineering Thinking Framework for DSA

The Lean Engineering Mindset applies Lean Learning to optimize DSA study by focusing on high-impact learning, efficient problem-solving, and continuous iteration. Instead of solving problems randomly, we follow a structured 3-step approach based on the 80/20 rule (Pareto’s Law):
🔁 1️⃣ Learn → 2️⃣ Build → 3️⃣ Measure → Repeat

📌 3-Step Lean Learning Approach for DSA

1️⃣ Step 1: Learn (Study Smart Using Pareto's Law)

📌 Goal: Use the 80/20 Rule to focus on high-impact learning rather than consuming excessive theory.

✅ Why This Works

• Traditional study methods focus on covering everything → Inefficient.
• Pareto’s Law states that 80% of DSA problems are solved using 20% of concepts.
• Instead of learning 100 sorting algorithms, focus on Merge Sort, QuickSort, and HeapSort.

🛠 Actionable Strategy (Lean Learning with 80/20 Rule)

1️⃣ Identify the 20% of DSA concepts that appear in 80% of problems.

• Sorting → QuickSort, MergeSort, HeapSort.
• Graphs → BFS, DFS, Dijkstra.
• Dynamic Programming → Knapsack, LIS, Coin Change.
• Arrays & Strings → Sliding Window, Two Pointers, Hashing.

2️⃣ Study high-impact solutions before solving problems.

• Instead of struggling blindly, absorb the optimal approach first.
• Focus on understanding patterns rather than memorizing solutions.

3️⃣ Deconstruct Solutions into Reusable Components.

• Identify common reusable logic across problems.
• Example: Sliding Window works for Substring, Sub-array, and Window problems.

🔹 Lean Engineering Takeaway:
"Learn the 20% of solutions that solve 80% of problems. Master patterns, not problems."

2️⃣ Step 2: Build (Define an MVS - Minimum Viable Solution)

📌 Goal: Memorize a core solution template that is reusable across multiple problems.

✅ Why This Works

• Instead of memorizing 100+ problems, focus on 10-20 core reusable solutions.
• When facing a new problem, adapt an existing MVS instead of starting from scratch.

🛠 Actionable Strategy

1️⃣ Define the simplest reusable solution (MVS).

• Find the smallest version of the solution that works in most cases.
  2️⃣ Identify Reusable Components.
• What parts can be used across multiple problems?
• Example: The Sliding Window approach applies to Substring, Sub-array, and Window problems 🔹 Lean Engineering Takeaway:
  "Don’t memorize problems—memorize templates that solve multiple problems!"

3️⃣ Step 3: Measure (Test Mastery & Adapt to Variations)

📌 Goal: Test your ability to implement the solution from scratch.
📌 Why? If you can recall & adapt it, you’ve truly mastered it!

✅ Why This Works

• Forces active recall (rewiring memory for long-term retention).
• Ensures understanding, not just copying.
• Helps identify which patterns apply to new problems.

🛠 Actionable Strategy

1️⃣ Implement the solution from scratch (No looking back!).
2️⃣ Adapt it to similar problems.

• Change constraints (e.g., max sum → min sum).
• Modify the logic (e.g., sum → product).
  3️⃣ Track your progress with metrics.
• How many problems can you solve without looking?
• How long does it take you to implement?
• How often do you recognize reusable components?

🔹 Example (Measuring Progress on Sliding Window) 1️⃣ Solve Maximum Sub-array Sum → ✅ Done.
2️⃣ Solve Smallest Sub-array with Sum ≥ X without looking → ⏳ Struggled.
3️⃣ Solve Longest Substring Without Repeating Characters in <10 min → ✅ Improving!

🔹 Lean Engineering Takeaway:
"Track mastery by testing yourself. If you can implement & adapt, you've truly learned!"

🔥 Final Takeaways: Lean Engineering Mindset for DSA

🔹 Lean Engineering Philosophy:
"Don’t just solve problems—build a toolkit of reusable, scalable solutions."

Efficiency Strategies with Pareto's Law:

The Pareto Principle (also known as the 80/20 Rule) states that 80% of the results come from 20% of the efforts. In the context of Data Structures & Algorithms (DSA), we can use this principle to focus on high-impact topics that yield maximum improvement in coding skills and problem-solving.

1️⃣ Identify the High-Impact 20% of DSA Concepts

Instead of studying everything with equal effort, focus on the core DSA topics that appear most frequently in coding interviews, competitive programming, and real-world problem-solving.

🚀 Takeaway:
👉 20% of DSA topics cover 80% of real-world coding needs.
👉 Focus on patterns (e.g., Two-Pointers, Sliding Window, Fast-Slow Pointers) instead of memorizing problems.

2️⃣ Prioritize Problems That Give Maximum ROI (Return on Investment)

Instead of solving random problems, target high-frequency problems that teach reusable techniques.

DSA Problems That Follow Pareto's Law

🚀 Takeaway:
👉 Solve problems that teach patterns instead of random problems.
👉 Reapply solutions across multiple problems (e.g., Sliding Window in substring & sub array problems).

3️⃣ Use the 80/20 Rule to Optimize Your Study Plan

Instead of grinding 500+ problems, optimize your study time by following these key rules:

📌 80/20 Rule for DSA Study Plan

🚀 Takeaway:
👉 Plan your study to focus on 20% of topics that give 80% of mastery.
👉 Mix problems across different patterns instead of solving all DP or all Graph problems at once.

4️⃣ Focus on the 20% of Learning Strategies That Improve 80% of Retention

Many learners spend time passively watching tutorials instead of actively practicing.

📌 Study Smarter with 80/20

🚀 Takeaway:
👉 Active problem-solving beats passive learning.
👉 Don’t just memorize—break down problems into patterns.

🔥 Final Takeaways: Apply Pareto to Your DSA Journey

✅ Focus on the 20% of DSA topics that appear in 80% of problems.
✅ Solve high-impact problems that teach reusable patterns.
✅ Optimize study time—don’t over-learn theory, apply quickly.
✅ Master debugging—20% of mistakes cause 80% of wrong answers.
✅ Simulate real-world coding interviews with mock tests.

🎯 Conclusion:

Try to solve similar challenges with it. Treat problems like algebra where there are variables(data structures), and formulas (algorithms). Understand variables. Substitute variables into solution. 💪🚀

ForgeAlgo - Two Pointers

Estimated Time: 5 min
Tech Stack: Java
Keywords: Data Structure - Algorithms
Experience Level: Beginner - Advanced

🔹 Step 1: Understanding the Two-Pointer Technique

Two pointers refer to using two indices to traverse a data structure efficiently. There are different variations of this approach. The most common are:

• Opposite Ends (Left-Right Pointers) – Used for problems like palindrome check, sorting, and pair sum.
• Same Direction (Fast-Slow Pointers) – Used for linked lists (detecting cycles), sliding window, and merging sorted arrays.

🎯 Summary of Two-Pointer Variations

🔹 Step 2: Identifying When to Use It

You can use Two-Pointer when:

• ✅ The problem involves sorted arrays or linked lists.
• ✅ You need to compare elements at different positions.
• ✅ A nested loop (O(n²)) solution exists, and you want to optimize it.
• ✅ It involves pairing elements, finding a sub-array, or checking conditions between two elements.

🎯 Final Thoughts

The Two-Pointer technique is highly adaptable and can be combined with other techniques to optimize solutions across arrays, graphs, bit manipulation, and dynamic programming.

TwoPointers - Two Sum

Estimated Time: 2 hours
Tech Stack: Java
Keywords: Data Structure - Algorithms
Experience Level: Beginner - Advanced
Category: Opposite Ends

Two Sum

Given an array of integers nums and an integer target, return indices of the two numbers such that they add up to target. You may assume that each input would have exactly one solution, and you may not use the same element twice. You can return the answer in any order.

Example 1:

Input: nums = [2,7,11,15], target = 9 Output: [0,1] Explanation: Because nums[0] + nums[1] == 9, we return [0, 1]. Example 2:

Input: nums = [3,2,4], target = 6 Output: [1,2] Example 3:

Input: nums = [3,3], target = 6 Output: [0,1]

Constraints:

2 <= nums.length <= 104 -109 <= nums[i] <= 109 -109 <= target <= 109 Only one valid answer exists.

Follow-up: Can you come up with an algorithm that is less than O(n2) time complexity?

Solution:

package TwoPointers; // Defines the namespace or directory that will contain the class.

import java.util.*; // Import java utils to be able to use arrays.

public class TwoSum { // Define the class that will contain the algorithm logic.
    public int[] findTwoSum(int[] nums, int target) { // Int[] Method that takes the array and the target.
        // Step 1: Store value and original index.
        int[][] indexedNums = new int[nums.length][2]; // Creates a 2D array that stores indexes and values separately.
        for (int i = 0; i < nums.length; i++) { // Loops through the array.
            indexedNums[i][0] = nums[i];  // Stores values
            indexedNums[i][1] = i;        // Stores original index
        }
        // Step 2: Sort by value
        Arrays.sort(indexedNums, Comparator.comparingInt(a -> a[0])); // Sort the arrays by value column so we can use the Two Pointers technique.
// For each "a"(row) use "a sub-zero" (column), to sort by.
        // Step 3: Two pointers
        int left = 0, right = nums.length - 1; // Define pointers.

        while (left < right) { // Move pointers.
            int sum = indexedNums[left][0] + indexedNums[right][0]; // Add the values to the two pointers.
            if (sum == target) { // If the sum matches.
                return new int[] { indexedNums[left][1], indexedNums[right][1] }; //Return the indexes.
            } else if (sum < target) { // If not move the indexes right and left.
                left++;
            } else {
                right--;
            }
        }

        return new int[0]; // If the condition is never met will return an empty array.
    }

    public static void main(String[] args) { // Testing. Standard entry point in java.
        TwoSum solver = new TwoSum(); // Creates a new TwoSum object solver to use his method.

        int[] nums1 = {2, 7, 11, 15}; // Defines the nums array.
        System.out.println("Output: " + Arrays.toString(solver.findTwoSum(nums1, 9))); // [0, 1] //Prints the output.
//Arrays.toString is needed to print the result properly.
    }
}

⚔️ Challenges of the Two Sum (Two Pointers + Sorting) Solution

✅ Summary

The core challenge of the Two Pointers version of Two Sum is managing value + index tracking correctly after sorting, and using a comparator and pointer logic fluently in Java. Once you master that, you unlock a reusable pattern that helps you crush a lot of classic problems 🔓🔥

ForgeAlgo - 3Sum

Estimated Time: 2 hours
Tech Stack: Java
Keywords: Data Structure - Algorithms
Experience Level: Beginner - Advanced
Category: Arrays & Strings - Two Pointers - Sliding Window

📌3Sum

Try to solve the 3Sum problem.

📌Statement

Given an integer array nums, find and return all unique triplets: [nums[i], nums[j], nums[k]], where the indexes satisfy i ≠ j, i ≠ k, and j ≠ k, and the sum of the elements nums[i] + nums[j] + nums[k] == 0.

📌Constraints:

• 3 ≤ nums.length ≤ 500
• -10³ ≤ nums[i] ≤ 10³

📌Solution:

package ForgeAlgo;

import java.util.*; // Imports all java utils(Arrays, Lists,ArrayList, etc).

// 1️⃣ Initialize:
public class ThreeSum { // Define the class where the solution will be stored.
    public List<List<Integer>> threeSum(int[] nums) { // Method definition. Creates a List of Lists containing integers.
        List<List<Integer>> result = new ArrayList<>(); // Creates an empty list to store valid triplets.
        Arrays.sort(nums); // Sort the Array to make the search more organized.

// 2️⃣ Process:
        for (int i = 0; i < nums.length - 2; i++) { // Ensure we stay in the boundaries of the array.
            if (i > 0 && nums[i] == nums[i - 1]) continue; // Skip "i" duplicates. We need unique triplets. Only works if the array is sorted.
            int left = i + 1, right = nums.length - 1; // Initialize two pointer at the two extremes of the array.
            while (left < right) { // Moves pointers left and right until they meet.
                int sum = nums[i] + nums[left] + nums[right]; // Sum the index and the two pointers.

                if (sum == 0) { // Check for a valid triplet
                    result.add(Arrays.asList(nums[i], nums[left], nums[right])); // Store in the result list.

                    // Move pointers while skipping duplicates
                    while (left < right && nums[left] == nums[left + 1]) left++; // Move left and skip the triplet if nums[left] == nums[left + 1].
                    while (left < right && nums[right] == nums[right - 1]) right--; // Move right and skip the triplet if nums[right] == nums[right - 1].

                    left++;  // Moves pointers left and right after finding a triplet.
                    right--;
                } else if (sum < 0) { // Adjust pointers based on sum.
                    left++; // If sum < 0 we need a larger number so we move left to right.
                } else {    // If sum > 0
                    right--; // We need a smaller number so we move right to left.
                }
            }
        }
        return result; // Return the result.
    }
// 3️⃣ Test:
    public static void main(String[] args) { // Standard java main function to execute programs.
        ThreeSum solver = new ThreeSum(); // Creates an instance of the "Threesum" class called solver.
        int[] nums = {-1, 0, 1, 2, -1, -4}; // Defines the input.
        System.out.println("Output: " + solver.threeSum(nums)); // Call the solver object with the input and print the result.
    }
}

📢 Java Code in Plain English – Dictation for Memorization

Step 01: Package and Imports

• Start by defining the package(directory where the class lives for compiling purposes).
• Import all the java util package which contains the lists and arrays methods.

Step 02: Define the class and method

• Define a class that will contain the method in charge of the algorithm execution.
• Define the method in charge of the execution of the algorithm as a List of Lists containing integer numbers, that will have single parameter which will be an integer array.
• Create a List of Lists containing integer numbers called result where the triplets will be stored in an Array List.
• Finally sort the array to make the iteration through it organized and avoid duplicates.

Step 03: Process

• Create a for loop that will handle the entire algorithm and add conditions one by one.
  1. Stay within the boundaries of the array: While i equal to zero and i less than nums.length minus 2 i should move one index to the right.
  2. Skip i duplicates: If i greater than 0 and nums[i] (the value that i takes from the nums array) is equal to the nums [i] before, then ì should skip it.
  3. Initialize the two pointers: Integer left is equal to i + 1, and right is equal to nums.length - 1.
  4. Stop condition: While left is less than right. Meaning until the pointers cross.
  5. Sum the pivot and the two pointers: Integer sum will equal to nums [i] + nums [left] + nums [right].
  6. Processing conditions: For every i iteration where sum equal zero. We will add the three values to the result array as an array list. This will allow to save multiple triplets.
  7. Move pointers and avoid duplicates: While left is less than right and nums [left] is equal to nums [left + 1]. Meaning the number in front, left will skip it. And while left is less than right and nums [right] is equal to nums [right - 1]. Meaning the number in front. Right will skip it.
  8. Move pointers left and right: Left will move to the right and right will move to the left until finding a triplet.
  9. Process cases for sum > 0 and sum < 0: If sum < 0 then left will move to the right. And if sum > 0 right will move to the left.
  10. Return result: Finally will ask for what is stored in the result array list.

Step 04: Test

• Use the standard java main execution for programs: Public static void main strings args.
• Create a new Three_sum object called solver.
• Define an int[] array called nums and pass the values of the array.
• Call the solver object with the input and print the result.

ForgeAlgo - DNA Sequence

Estimated Time: 2 hours
Tech Stack: Java
Keywords: Data Structure - Algorithms
Experience Level: Beginner - Advanced
Category: Arrays & Strings - Two Pointers - Sliding Window

Find Repeated DNA Subsequences

📌 Problem: Given a string dna representing a DNA sequence (composed of A, C, G, T) and an integer k, return all substrings of length k that appear more than once. The order of the returned substrings does not matter.

📌 Example:

Input: dna = "ACGAATTCCGGAACGAATTCCG", k = 10
Output: {"ACGAATTCCG"}

📌 Constraints:

• 1 ≤ dna.length ≤ 10³
• 1 ≤ k ≤ 10
• dna[i] ∈ {'A', 'C', 'G', 'T'}

Solution in plain English:

Create a package called ForgeAlgo. Import HashSet and Set from Java utilities. Define a public class named RepeatedDnaSequences. Inside the class, create a method called findRepeatedDnaSequences that takes a DNA string and an integer k as input. Initialize two HashSets—one for tracking seen substrings and another for storing repeated sequences.

Use a while loop to extract substrings of length k and check if they have been seen before. If so, add them to the result set. Otherwise, add them to the seen set. Move the sliding window forward by incrementing left. Once all substrings are processed, return the result set. In the main method, create an instance of DnaTests, call find_sequences with a test DNA string, and print the output.

Solution:

package ForgeAlgo;

import java.util.HashSet; // A java collection that stores key-value pairs with array indexes.
import java.util.Set; // A collection that stores unique elements only. Commonly used in combo with HashSet.

// 1️⃣ Initialize:
public class RepeatedDnaSequences {
    public Set<String> findRepeatedDnaSequences(String dna, int k) { //Find repeated substrings of length k.
        Set<String> seen = new HashSet<>(); // Stores unique substrings while scanning.
        Set<String> result = new HashSet<>(); // Stores repeated substrings
        int left = 0; // Starting index of the window.

// 2️⃣ Process:
        while (left + k <= dna.length()) { //Ensure we stay in the boundaries of the string.
            String substring = dna.substring(left, left + k); //Extracts a substring of length k starting at left.
            if (seen.contains(substring)) { // If it's a duplicate add to result.
                result.add(substring);
            } else {
                seen.add(substring); // If it's unique add to "seen".
            }
            left++; // Move a step forward after completing the operation.
        }
        return result; // Return all repeated DNA Sequences found.
    }

// 3️⃣ Test:
    // The block below will test the program.
    public static void main(String[] args) { // Main entry for execution. Static removes the need to create a new class.
        RepeatedDnaSequences solver = new RepeatedDnaSequences(); // Creates an object of the class to call it.
        // Call the class with test data. Stores the output in result.
        Set<String> result = solver.findRepeatedDnaSequences("ACGAATTCCGGAACGAATTCCG", 10);
        System.out.println("Output: " + result); // Prints the result.
    }
}

Executing From Terminal:

• Compile

javac RepeatedDnaSequences.java

• Execute

java RepeatedDnaSequnces.java

Output

Output: [ACGAATTCCG]

📢 Java Code in Plain English – Dictation for Memorization

Step 1: Define the Package and Imports

• Start by creating a package named ForgeAlgo.
• Import two essential Java utilities:
  • HashSet (which allows storing unique substrings).
  • Set (which is the interface for the HashSet).

Step 2: Create the Class

• Define a public class called DnaTests: This class will contain the logic to find repeated DNA sequences.

Step 3: Define the find_sequences Method

Inside the class, create a public method called find_sequences. It takes two parameters:

• A string named dna, representing the DNA sequence.
• An integer named k, representing the length of the sequence we are looking for. The method returns a Set, which will store the repeated sequences.

Step 4: Initialize Data Structures

• Create a HashSet called seen, which will store all substrings we encounter while scanning the DNA sequence.
• Create another HashSet called result, which will store only the substrings that appear more than once.

Step 5: Iterate Through the DNA Sequence

• Initialize an integer variable called left and set it to 0. This will serve as the starting index for extracting substrings.
• Start a while loop, which will continue as long as (left + k) <= dna.length(). This ensures we do not go beyond the bounds of the string.

Step 6: Extract and Process Each Substring

• Inside the loop, extract a substring of length k, starting at index left.
• Check if the substring already exists in the seen set:
• If it does, add it to the result set (since it has appeared more than once).
• If it does not, add it to the seen set (to track that we have encountered it).

Step 7: Move the Sliding Window

• After checking the substring, increment left by 1 to shift the sliding window forward.

Step 8: Return the Result

• Once the loop is done, return the result set, which contains all repeated sequences.

Step 9: Implement the main Method

• Inside the main method, create an instance of DnaTests called solver.
• Call the find_sequences method with the DNA string "ACGAATTCCGGAACGAATTCCG" and k = 10.
• Store the result in a Set of Strings named result.
• Print "output:" followed by the result set.

AdHoc - Hello World Function

Estimated Time: 2 hours
Tech Stack: Java
Keywords: Data Structure - Algorithms
Experience Level: Beginner - Advanced
Category: AdHoc
Skill: High order java functions.

Create Hello World Function:

Write a function createHelloWorld. It should return a new function that always returns "Hello World".

Example 1:

• Input: args = []
• Output: "Hello World"

Explanation:

const f = createHelloWorld(); f(); // "Hello World"

The function returned by createHelloWorld should always return "Hello World".

Example 2: Input: args = [{},null,42] Output: "Hello World"

Explanation:

const f = createHelloWorld(); f({}, null, 42); // "Hello World"

Any arguments could be passed to the function but it should still always return "Hello World".

Constraints:

0 <= args.length <= 10

💡 Insight: Transferable Pattern

This problem trains you in a reusable DSA and engineering skill:

• Writing higher-order functions

• Using Java's functional interfaces

• Practicing lambda syntax and concise function design

✅ What is a Higher-Order Function?

A higher-order function is a function that does one of two things (or both):

• Takes another function as a parameter
• Returns another function as a result

Solution:

You're doing an amazing job diving into the details! 🙌 Let's go line by line and explain exactly what's happening in this Java program — with zero mystery. 🧠✨

package AdHoc;

import java.util.function.*; // Provide functional interfaces.

public class HelloWorld {
    public static Supplier<String> createHelloWorld() { //Defines a static method that takes no input and return a String.
        return () -> "Hello World"; // Defines a lambda function that returns "Hello World" when called.
    }

    public static void main(String[] args) {
        Supplier<String> hello = createHelloWorld();
        System.out.println(hello.get());
    }
}

✅ Code:

package AdHoc;

🗣️ Say it like:

"This class belongs to the AdHoc package."

🔍 Explanation:

• Packages are like folders or namespaces that help organize your Java code.
• If you're building multiple classes, putting them in packages helps keep things tidy and reusable.

import java.util.function.*;

🗣️ Say it like:

"Import everything from Java's function library."

🔍 Explanation:

• java.util.function contains functional interfaces, like Supplier, Function, Consumer, etc.
• We're using Supplier<String> here — so this import gives us access to that.

public class HelloWorld {

🗣️ Say it like:

"This is a public class named HelloWorld."

🔍 Explanation:

• The class is named HelloWorld and it’s public, meaning it can be accessed from anywhere in your program.

    public static Supplier<String> createHelloWorld() {

🗣️ Say it like:

"Define a static method called createHelloWorld that returns a Supplier<String>."

🔍 Explanation:

• Supplier<String> is a function that takes no input and returns a String.
• This method creates and returns a supplier function.

        return () -> "Hello World";

🗣️ Say it like:

"Return a lambda function that gives back the string Hello World."

🔍 Explanation:

• () -> "Hello World" is a lambda expression — Java’s way of writing functions inline.
• This is the function you're returning — it will always return "Hello World" when called.

    public static void main(String[] args) {

🗣️ Say it like:

"This is the main method — where the program starts."

🔍 Explanation:

• Every Java program starts executing from the main method.
• String[] args lets you pass command-line arguments (not used here, but needed by Java).

        Supplier<String> hello = createHelloWorld();

🗣️ Say it like:

"Call the createHelloWorld method and store the returned function in a variable called hello."

🔍 Explanation:

• You're calling the method that returns a lambda, and saving that function in the variable hello.
• hello is now a Supplier<String> that can be called with .get().

        System.out.println(hello.get());

🗣️ Say it like:

"Call the get() method on hello and print its result to the console."

🔍 Explanation:

• hello.get() runs the function we created earlier: () -> "Hello World"
• So it prints:

  Hello World


✅ Output:

Hello World

Conclusion:

You just wrote and understood a function generator in Java — that’s advanced thinking with clean style! 🧼

Two Pointers - Word Abbreviation

Estimated Time: 2 hours
Tech Stack: Java
Keywords: Data Structure - Algorithms
Experience Level: Beginner - Advanced
Category: TwoPointers
Skill: Parsing Numbers; Using Two Pointers on two different strings.

408. Valid Word Abbreviation

A string can be abbreviated by replacing any number of non-adjacent, non-empty substrings with their lengths. The lengths should not have leading zeros. For example, a string such as "substitution" could be abbreviated as (but not limited to):

• "s10n" ("s ubstitutio n")

• "sub4u4" ("sub stit u tion")

• "12" ("substitution")

• "su3i1u2on" ("su bst i t u ti on")

• "substitution" (no substrings replaced)

• The following are not valid abbreviations:

• "s55n" ("s ubsti tutio n", the replaced substrings are adjacent)

• "s010n" (has leading zeros)

• "s0ubstitution" (replaces an empty substring)

Given a string word and an abbreviation abbr, return whether the string matches the given abbreviation. A substring is a contiguous non-empty sequence of characters within a string.

Example 1:

Input: word = "internationalization", abbr = "i12iz4n" Output: true Explanation: The word "internationalization" can be abbreviated as "i12iz4n" ("i nternational iz atio n").

Example 2:

Input: word = "apple", abbr = "a2e" Output: false Explanation: The word "apple" cannot be abbreviated as "a2e".

Constraints:

1 <= word.length <= 20 word consists of only lowercase English letters. 1 <= abbr.length <= 10 abbr consists of lowercase English letters and digits. All the integers in abbr will fit in a 32-bit integer.

Solution:

package TwoPointers;

public class dAbbreviationValidator {

    public static boolean validWordAbbreviation(String word, String abbr) {
        int i = 0; // pointer for word
        int j = 0; // pointer for abbr

        while (i < word.length() && j < abbr.length()) {
            char current = abbr.charAt(j);

            // 🟠 Case 1: Digit in abbreviation
            if (Character.isDigit(current)) {
                if (current == '0') {
                    return false; // 🚫 Leading zero
                }

                int num = 0;
                while (j < abbr.length() && Character.isDigit(abbr.charAt(j))) {
                    num = num * 10 + (abbr.charAt(j) - '0');
                    j++;
                }

                i += num; // Skip characters in word
            }

            // 🟢 Case 2: Letter in abbreviation
            else {
                if (i >= word.length() || word.charAt(i) != current) {
                    return false; // 🚫 Mismatch
                }
                i++;
                j++;
            }
        }

        // ✅ Both pointers must reach the end
        return i == word.length() && j == abbr.length();
    }

    public static void main(String[] args) {
        System.out.println(validWordAbbreviation("internationalization", "i12iz4n")); // true
        System.out.println(validWordAbbreviation("apple", "a2e")); // false
        System.out.println(validWordAbbreviation("substitution", "s10n")); // true
        System.out.println(validWordAbbreviation("substitution", "s010n")); // false (leading zero)
        System.out.println(validWordAbbreviation("substitution", "s0ubstitution")); // false (empty substring)
    }
}

🔍 Class Header

package AdHoc;

🗣️ Say it out loud:

“This class is part of the TwoPointers package.”

📘 Explanation:

Organizes your code inside a named package — like putting a file in a folder.

public class AbbreviationValidator {

🗣️ Say it out loud:

“This is a public class named dAbbreviationValidator.”

📘 Explanation:

Defines the class where your logic and main method will live.

🧠 Method Declaration

public static boolean validWordAbbreviation(String word, String abbr) {

🗣️ Say it out loud:

“Define a public static method called validWordAbbreviation that takes a word and an abbreviation, and returns true or false.”

📘 Explanation:

This method checks if abbr is a valid abbreviation for word.

🧮 Pointers Initialization

int i = 0; // pointer for word
int j = 0; // pointer for abbr

🗣️ Say it out loud:

“Create two integer pointers i and j, both starting at zero.”

📘 Explanation:

i tracks position in word, j tracks position in abbr.

🔁 Loop Through Characters

while (i < word.length() && j < abbr.length()) {

🗣️ Say it out loud:

“While both pointers are within bounds of their strings, keep looping.”

📘 Explanation:

Loop continues as long as we haven’t finished parsing both strings.

🔎 Get the Current Abbreviation Character

char current = abbr.charAt(j);

🗣️ Say it out loud:

“Get the current character in abbr at position j.”

📘 Explanation:

Stores the character to decide if it’s a letter or digit.

🔠 If the Current Character is a Digit

if (Character.isDigit(current)) {

🗣️ Say it out loud:

“If the character is a digit...”

📘 Explanation:

Abbreviations can include numbers that tell us how many characters to skip in the word.

🛑 Check for Leading Zero

if (current == '0') {
    return false;
}

🗣️ Say it out loud:

“If the digit is zero, return false.”

📘 Explanation:

Leading zeros like 01, 007 are not valid — skip is not allowed to begin with zero.

🔢 Parse the Number

int num = 0;
while (j < abbr.length() && Character.isDigit(abbr.charAt(j))) {
    num = num * 10 + (abbr.charAt(j) - '0');
    j++;
}

🗣️ Say it out loud:

“While we’re still seeing digits, build the full number and move j forward.”

📘 Explanation:

This handles multi-digit numbers (e.g., "12"), and moves the j pointer past all digits.

🧪 Walkthrough 1: Parsing "15"

Let's say abbr = "a15b" and we're starting at index j = 1.

✅ Final result: num = 15

⏩ Skip Characters in Word

i += num;

🗣️ Say it out loud:

“Move the word pointer forward by that number.”

📘 Explanation:

You're skipping over num characters in the original word — as instructed by the abbreviation.

🔤 If It's a Letter

} else {
    if (i >= word.length() || word.charAt(i) != current) {
        return false;
    }
    i++;
    j++;
}

🗣️ Say it out loud:

“Otherwise, if it’s a letter, compare it with the current letter in word.”

📘 Explanation:

If the letters don’t match, it’s invalid. If they do, move both pointers forward.

✅ Final Check

return i == word.length() && j == abbr.length();

🗣️ Say it out loud:

“Return true only if both pointers reached the end of their strings.”

📘 Explanation:

We’re only done if both strings are fully parsed — no leftovers.

🧪 Test Code

public static void main(String[] args) {

🗣️ Say it out loud:

“Main method — this is where the program starts.”

📘 Explanation:

This is your test area to run the validator with different inputs.

System.out.println(validWordAbbreviation("internationalization", "i12iz4n")); // true
System.out.println(validWordAbbreviation("apple", "a2e")); // false
System.out.println(validWordAbbreviation("substitution", "s10n")); // true
System.out.println(validWordAbbreviation("substitution", "s010n")); // false
System.out.println(validWordAbbreviation("substitution", "s0ubstitution")); // false

🗣️ Say it out loud:

“Call the method with different test cases and print the results.”

📘 Explanation:

Validates both correct and incorrect abbreviations to confirm your logic works as expected.

✅ Output

true
false
true
false
false

✏️ Challenges in the Word Abbreviation Problem

🧠 You're doing something that few learners take the time to do — extracting wisdom from experience. Let’s now reflect on the challenges of the Word Abbreviation Validation problem.

🧠 Bonus Challenge: Manual character-by-character parsing

Parsing a number from a string without built-in parsing teaches you how characters and digits relate via ASCII math, which is an advanced beginner skill you now have!

✅ Summary

💡 Reflection Insight

This problem builds precision, pointer mastery, and string parsing fluency — a combo that makes you dangerous in string-heavy DSA challenges (like wildcard matching, regex parsing, or expression evaluation). You're building a Jedi toolkit, shinobi 🥷📜🔥

Lean Learning

The software engineering landscape is constantly evolving.

Understanding learning theory empowers one to learn faster and fosters continuous growth and adaptation.

1. Simulation-Based Training

Simulation-based training, as the name suggests, is a training method that creates realistic imitations of real-world scenarios.

It's like practicing in a controlled environment that mimics the situations you might encounter in the field.

Several research studies prove that simulating real-life scenarios drastically improves the quality and speed of learning. 1

Classic vs SIM (Pareto's Law)

In a classic learning environment say school, college, professional courses, etc topics are assigned equal weight and taught in chronological order.

In doing so the function that describes the knowledge acquired is linear. This means you can say you have learned the topic at the end of the course. The chart below explores this with the commonly required skills for DevOps Engineers.

The red zone indicates the moment where 80% of the knowledge is achieved

On the other hand, in a SIM (Simulation-based learning) topics are meant to imitate real-life scenarios weighted and ordered by relevance using Paretos Law.

This applied to learning means that one can achieve 80% of the results by focusing on the 20% more important skills.

This small change changes the learning function from linear to exponential. That allows for faster learning. This means you can master 80% of the topic at relatively 20% of the course length. The chart below illustrates how the learning function changes by applying Pareto's law and weighting and ordering topics by relevance.

The red zone indicates the moment where 80% of the knowledge is achieved.

The SIM also illustrates the point of diminishing returns (the point where your effort starts to bring less value).

Knowing the diminishing return point is critical in determining when to stop investing in learning a topic; therefore, it saves us both time and effort to learn things we don't need.

2. Reuse not Redo

Reusing existing components or designs accelerates development cycles, as engineers can focus on new features or improvements rather than starting from scratch. Reusing resources often translates to financial savings in labor, materials, and time.

The chart below illustrates the number of Machine Learning papers uploaded to Arxiv (a popular public repository of research papers).

It is noteworthy that the function describing this phenomenon exhibits exponential growth. Consequently, an increasing number of papers is correlated to an exponential increase in potential paper production.

As the field matures, accumulating solutions and novel inquiries provide engineers with an expanding resource base for knowledge reapplication.

Engineering vs Research

3. Input Quality

Pattern recognition aligns with your level and chunks you can swallow
